Product Detail

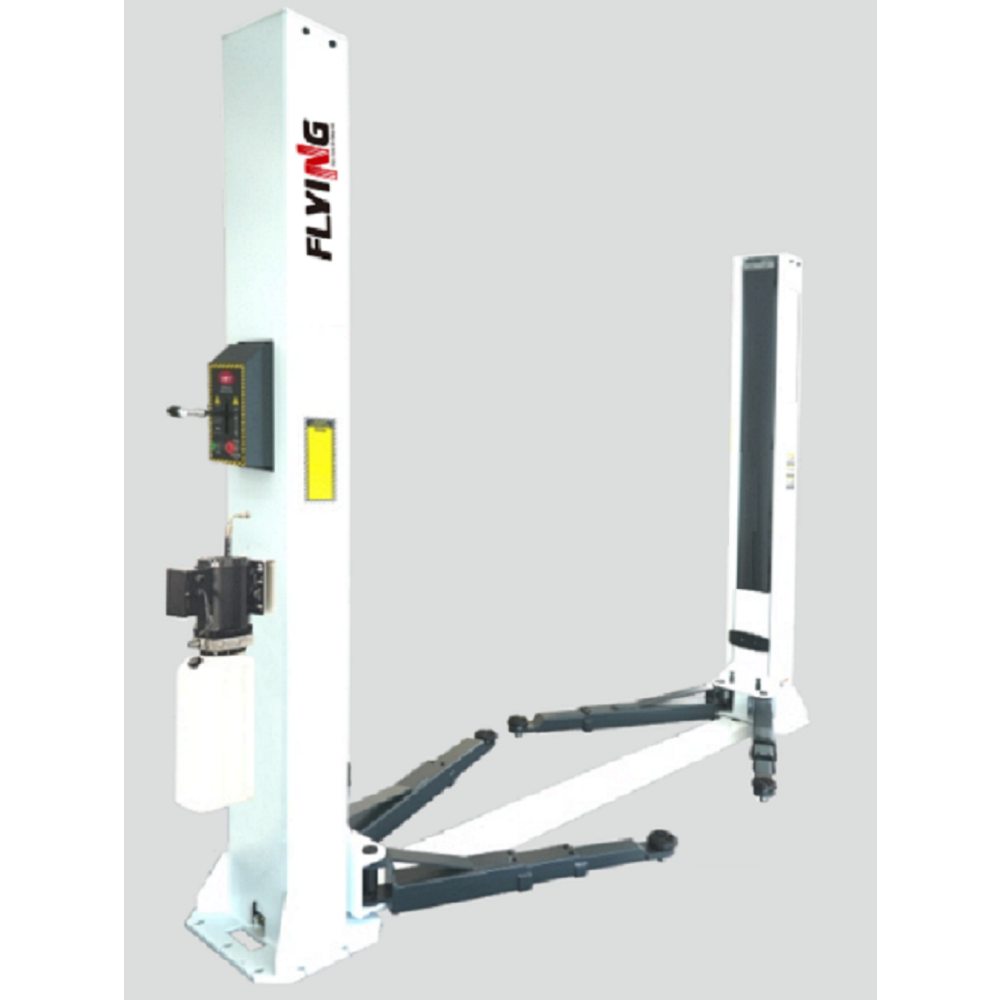

BASE PLATE 2-POST LIFT

Model: TTPF-12C

Capacity: 5.5T

Color: RAL5015 & RAL1018 (customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Features
1. Environment-friendly and low noise design.
2. Equipped with auto-locking plate style carriage, with high strength and strong engagement of the locking teeth and lifting arms.
3. The back of the carriage is welded with a lifting bar, which is locked with the locking hook of the main and secondary column, making it safer and more reliable.
4. The unlocking was controlled by the stacked telescopic locking bar. While complying with the minimum safety position of the equipment, it ensures that the locking bars run aesthetically and do not extend out of the column.
5. Auto-handle control single-point safety release. The lifting and lowering was operated with only one handle, with simple and convenient operation.
6. Symmetric arm design, optional 2+3-stage or 3+3-stage lifting arms, which can meet more maintenance needs.
Technical Parameters
Lifting height2018mm
Overall height2826mm
Overall width3670mm
Drive-thru width2680mm
Arm size
(3) 695-1300mm
Arm size
(2) 1070-1700mm
Mininum height
110mm
Lifting capacity
5.5T

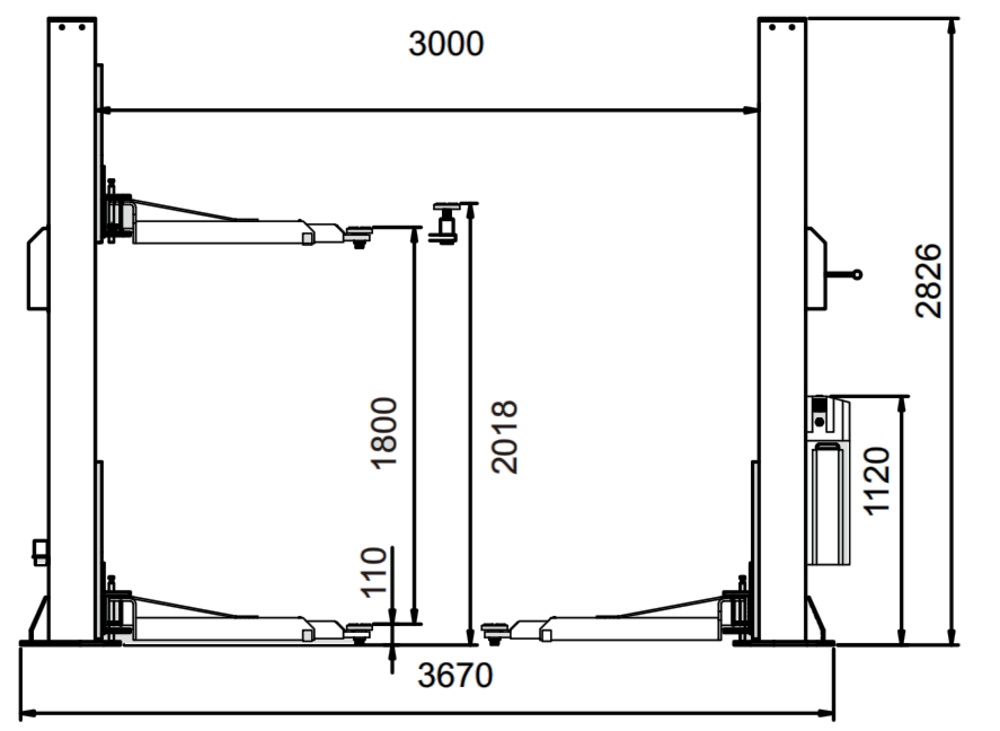

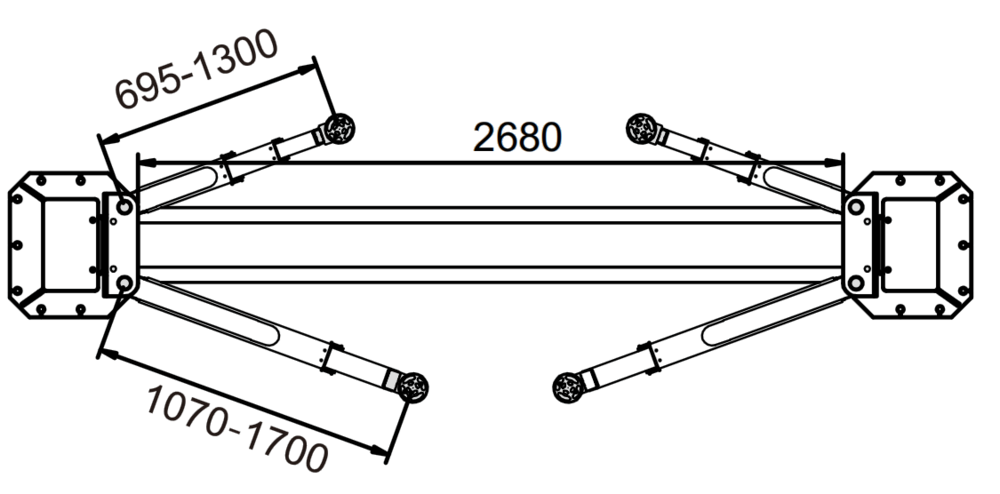

Size Drawing
