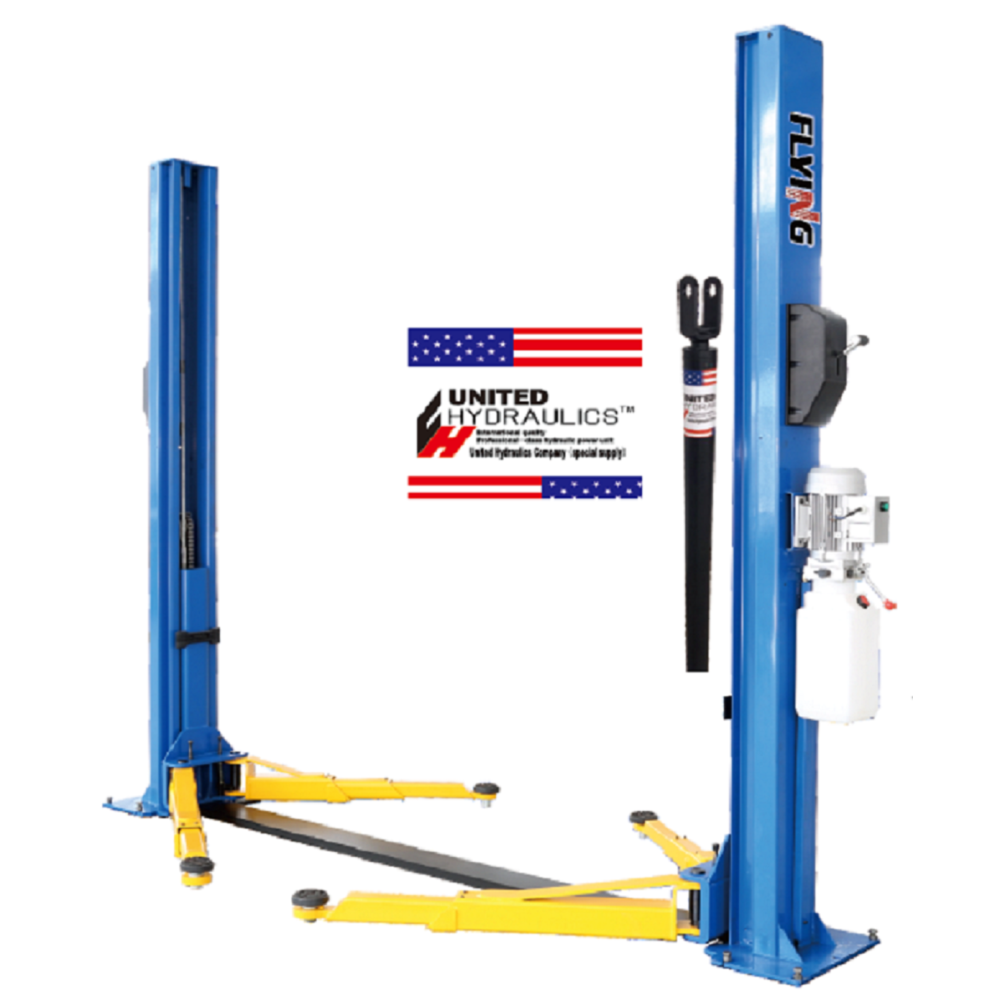

1. 2 year of warranty 2. The professional-class hydraulic cylinder and pump are supplied by USA United Hydraulics company. 3. New dual S shape design column has higher strength. 4. 3-Stage lifting arm mechanism is adopted to get more working coverage for various vehicle chasis. 5. Automatic arm lock release mechanism is security, convenient and reliable for operation. 6. Screw type lifting pads for standard configuration. 7. Equipped electric control box for operation and lock release. 8. Equipped with alumimun motor for power unit. 9. Vehicle door protection rubber buffer. 10. Throttling valve is standard configuration for oil cylinders. 11. Asymmetric installation of columns available for wider open area for vehicle doors.

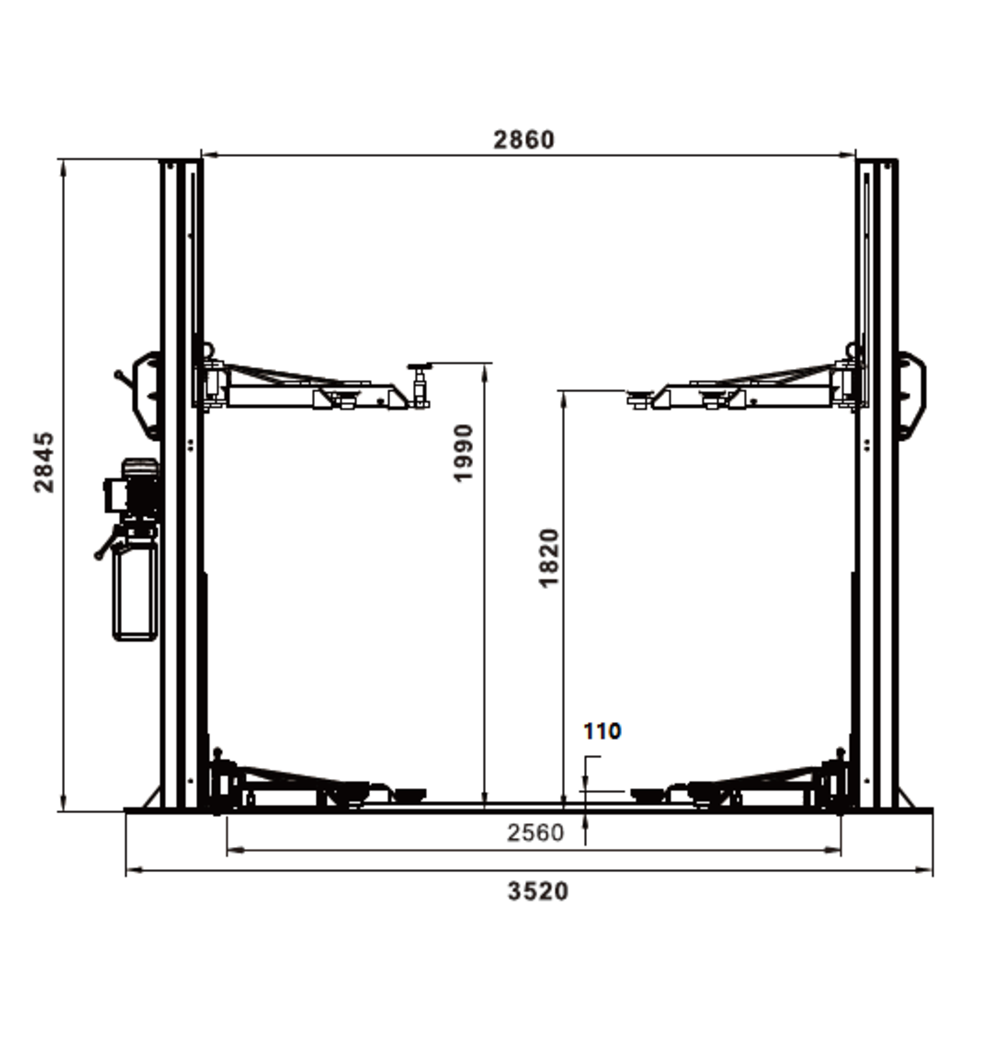

Technical parameters | |
Lifting height | | 1990mm |
Overall height | | 2845mm |
Overall width | | 3520mm |
Arm size | | 900-1430mm |
Arm size | | 580-1460mm |
Pad height | | 90mm |
Width between posts | | 2860mm |
Lifting capacity | | 4.0T |
|
