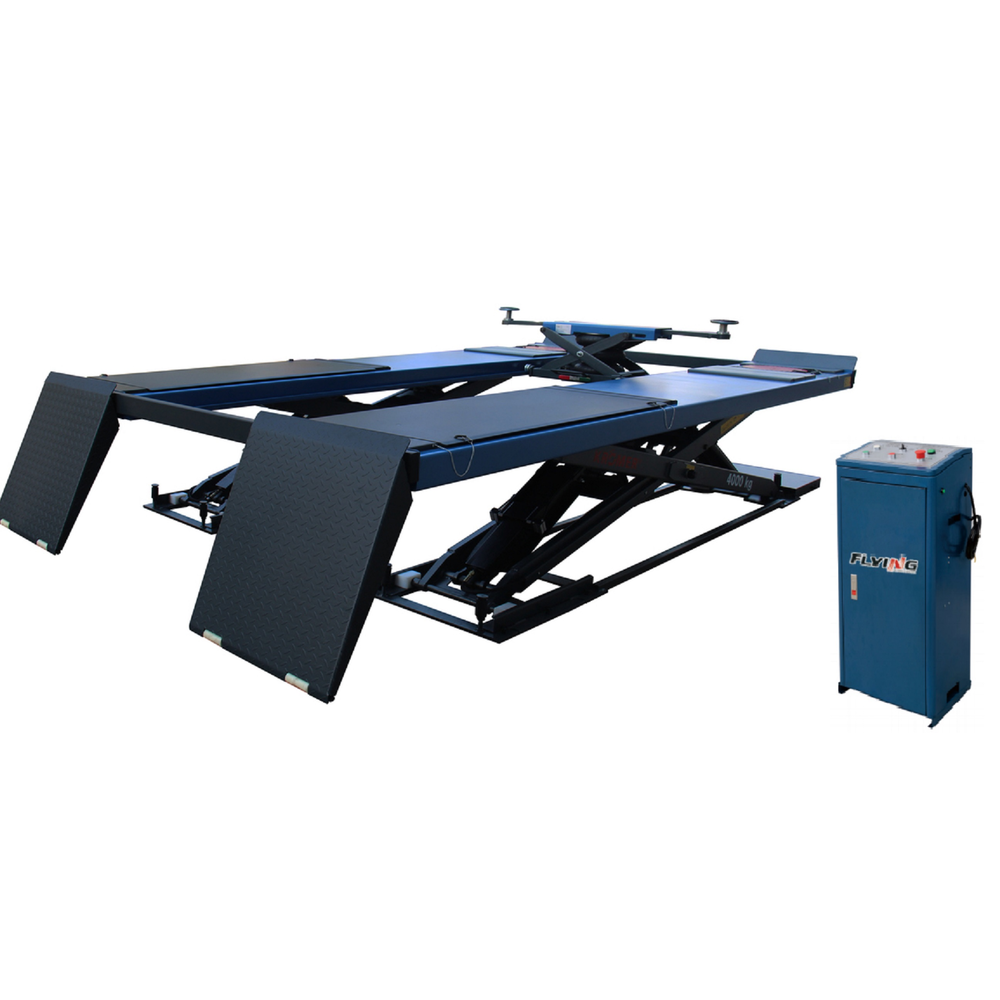

4.0T WHEEL ALIGNMENT SCISSOR LIFT (SUPER THIN)

Model: FR-6108C

Capacity: 4.0T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Share:

1. Underground installation.
2. All the motor pumps and seal kits of cylinders are imported from Italy.
3. All the hydraulic cylinders are imported form Taiwan.
4. Inside of the cylinder assembly has special treatment to make sure it doesn't leak oil.
5. 24V control system and limit switch.
6. Platform length is 4500mm.

Capacity4.0T
Lifting height185-1850mm
Platform length4500mm
Platform width630mm
Width between platforms900mm

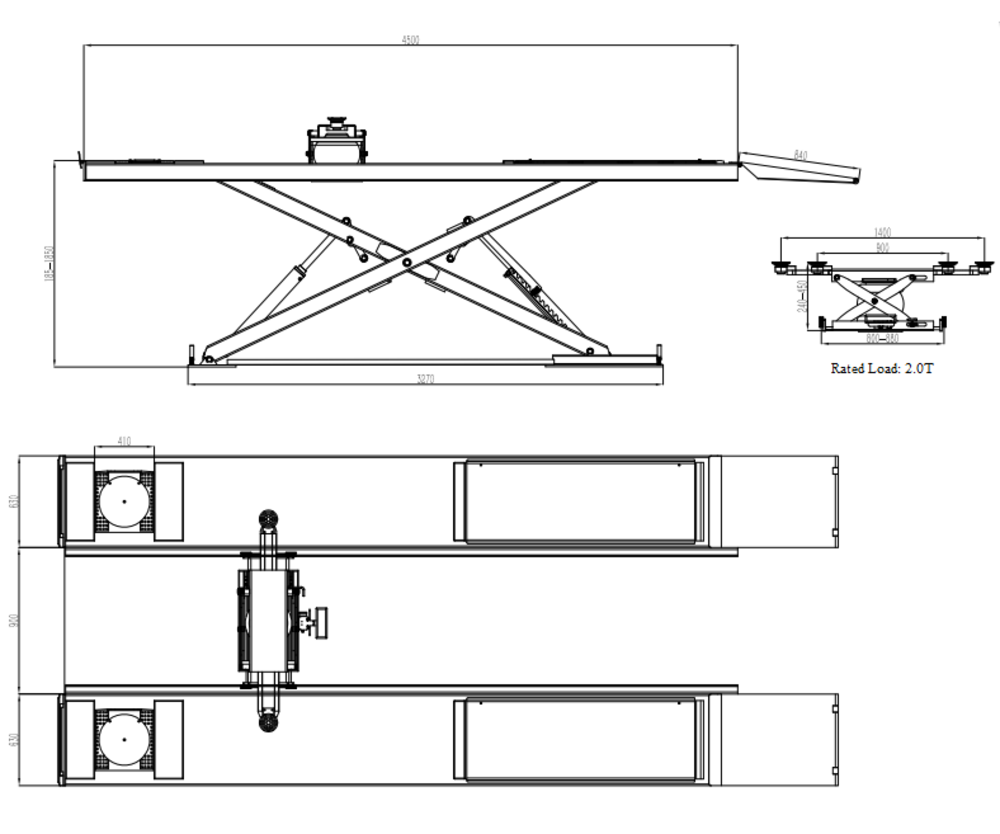

Size Drawing
