Product Detail
BASE PLATE TWO POST LIFT
Model: TTPF-15C
Capacity: 6.8T
Color: RAL5005 & RAL3002(customized according to customer's requirements)
Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)
| Features | ||||||||
| 1. Environment-friendly and low noise design. 2. Equipped with auto-locking plate style carriage, with high strength and strong engagement of the locking teeth and lifting arms. 3. The back of the carriage is welded with a lifting bar, which is locked with the locking hook of the main and secondary column, making it safer and more reliable. 4. The unlocking was controlled by the stacked telescopic locking bar. While complying with the minimum safety position of the equipment, it ensures that the locking bars run aesthetically and do not extend out of the column. 5. Auto-manual single side release. The lifting and lowering was operated with only one hand, with simple and convenient operation. 6. Symmetric arm design with 2+3-stage or 3+3-stage lifting arms, which can meet more maintenance needs. | ||||||||
| Technical Parameters | ||||||||||||||||||||||||
| ||||||||||||||||||||||||

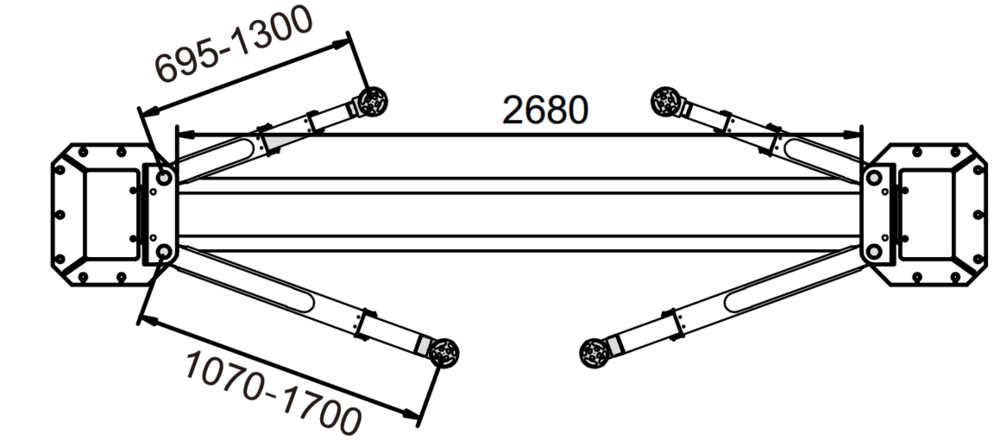

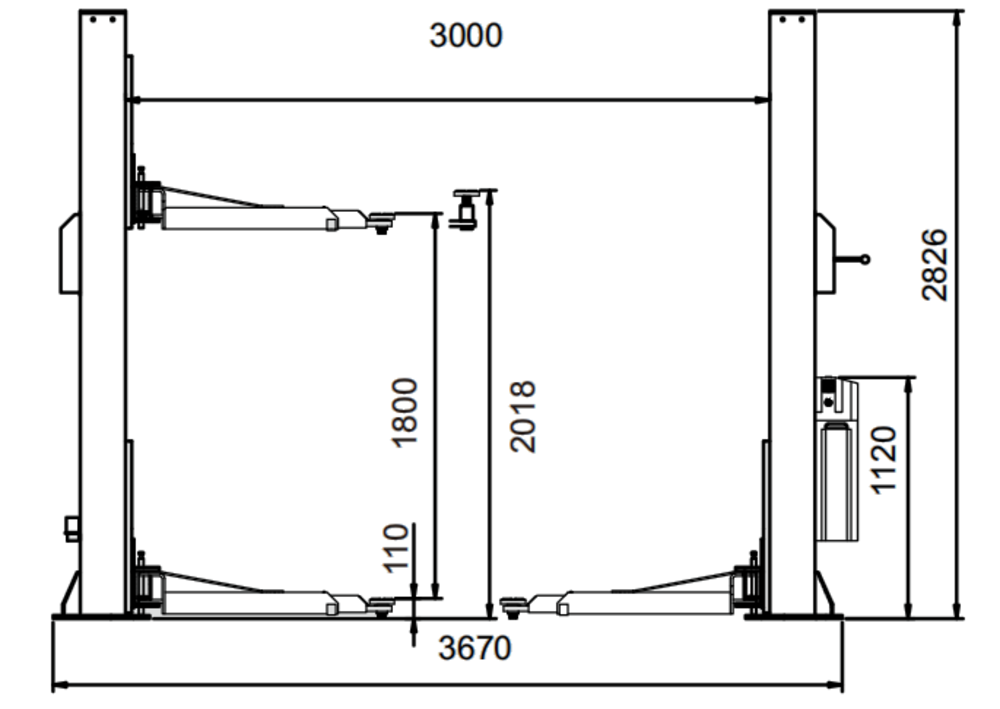

Size Drawing
