Product Detail

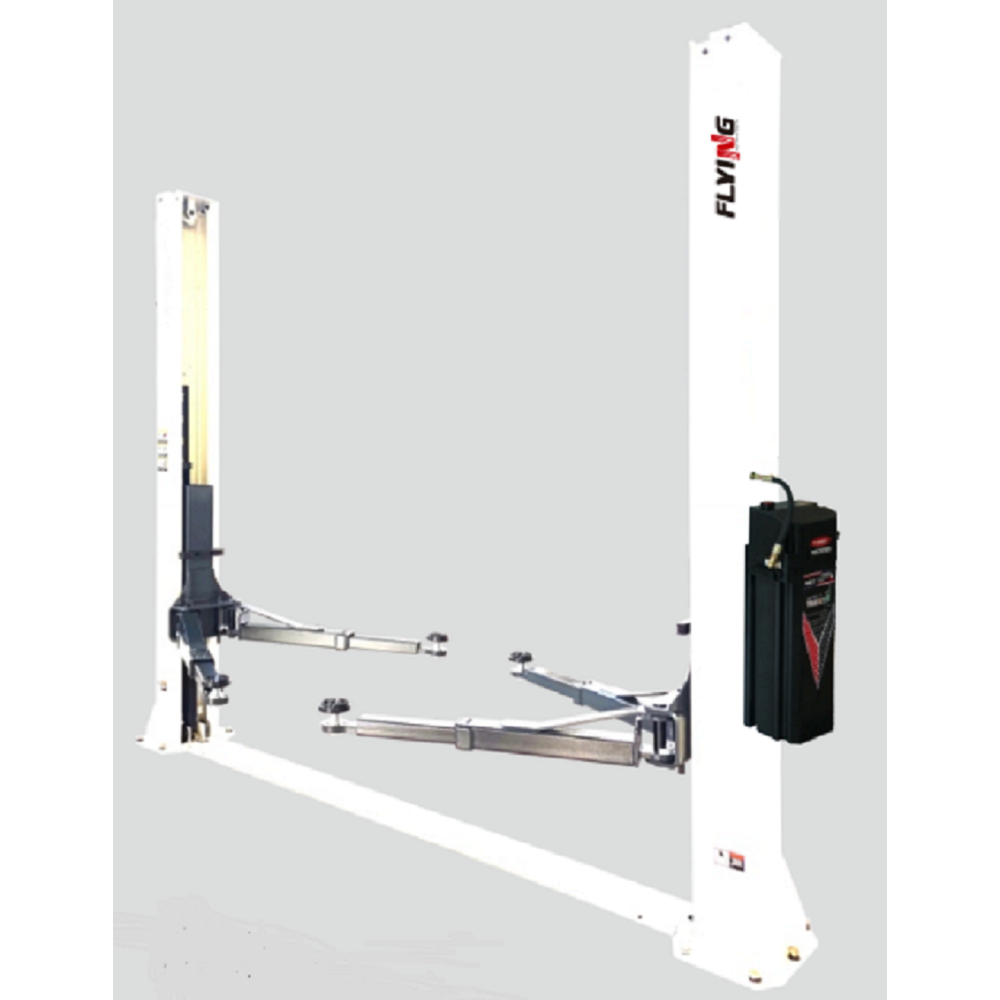

BASE PLATE 2-POST LIFT

Model: TTPF-10SE

Capacity: 4.5T

Color: RAL5015 & RAL1018 (customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Features

1. Environment-friendly and low noise design.
2. Equipped with auto-locking plate style carriage, with high strength and strong engagement of the locking teeth and lifting arms.
3. The carriage is equipped with emergency locking device, which makes the maintenance more convenient. The carriage and columns are equipped with low-voltage electromagnetic unlocking linkage mechanism, which can be automatically unlocked by button operation.
4. Fully electric control design, more convenient for operation. The lifting, lowering and locking operations are controlled by buttons. The power unit is equipped with integrated low-voltage electronic control device.
5. Symmetric arm design, optional 2+3-stage or 3+3-stage lifting arms, which can meet more maintenance needs.
6. Equipped with a power unit with low power consumption, high efficiency, less failure and low noise.
7. Equipped with an oil-immersed motor. The motor and oil pump work in hydraulic oil, which prolongs the working life of the motor and oil pump.

Technical Parameters
Lifting height100-2074mm
Overall height2824mm
Overall width3392mm
Drive-thru width
           2520mm
Arm size
550-1105mm
Arm size
876-1472mm
Width between posts
2830mm
Lifting capacity
4.5T

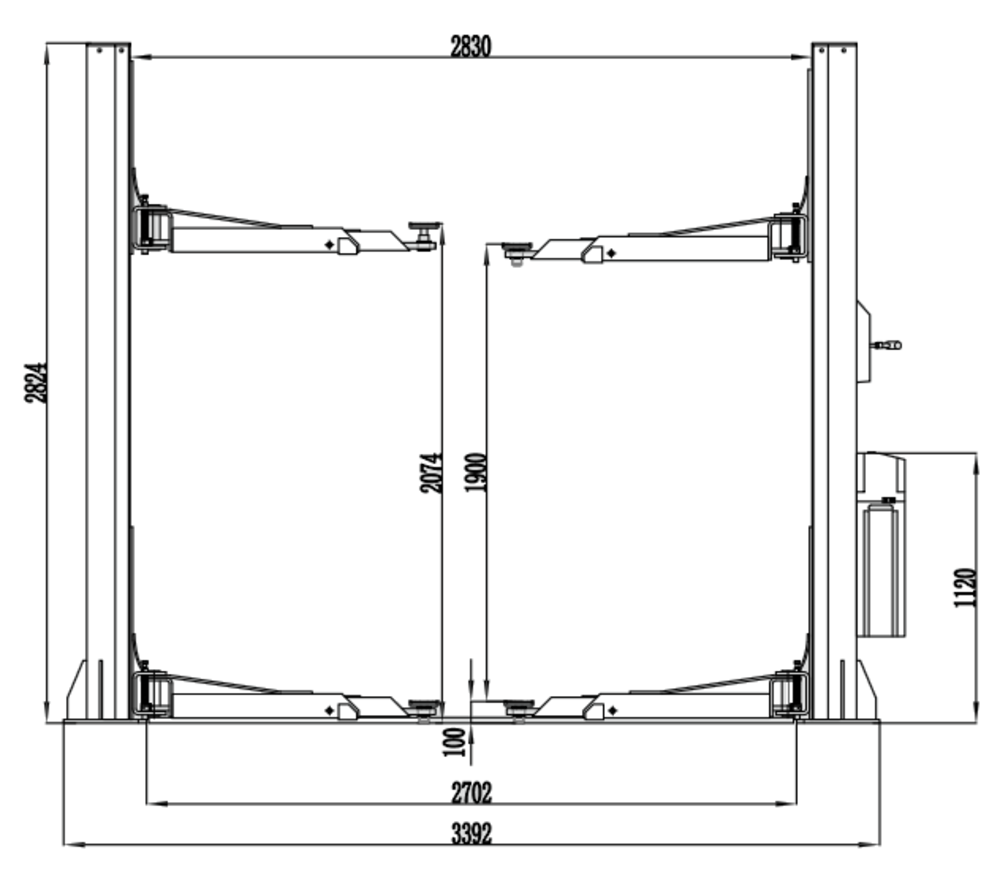

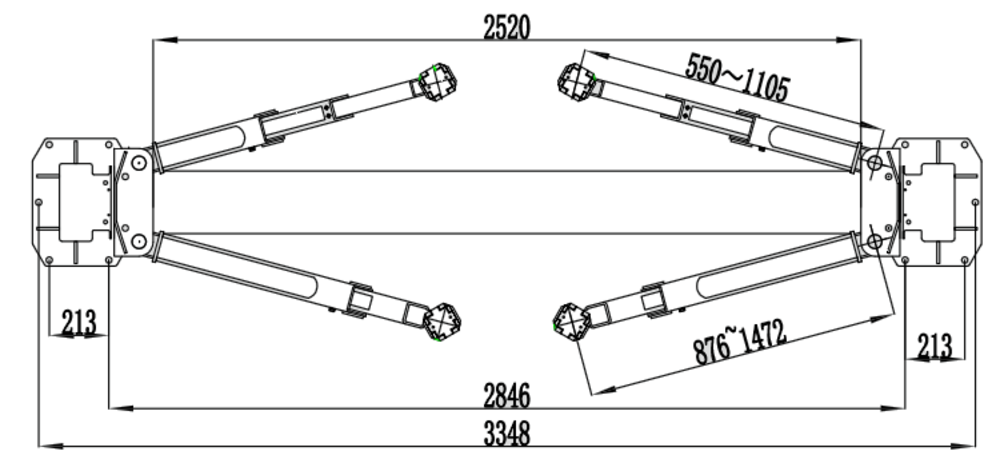

Size Drawing
