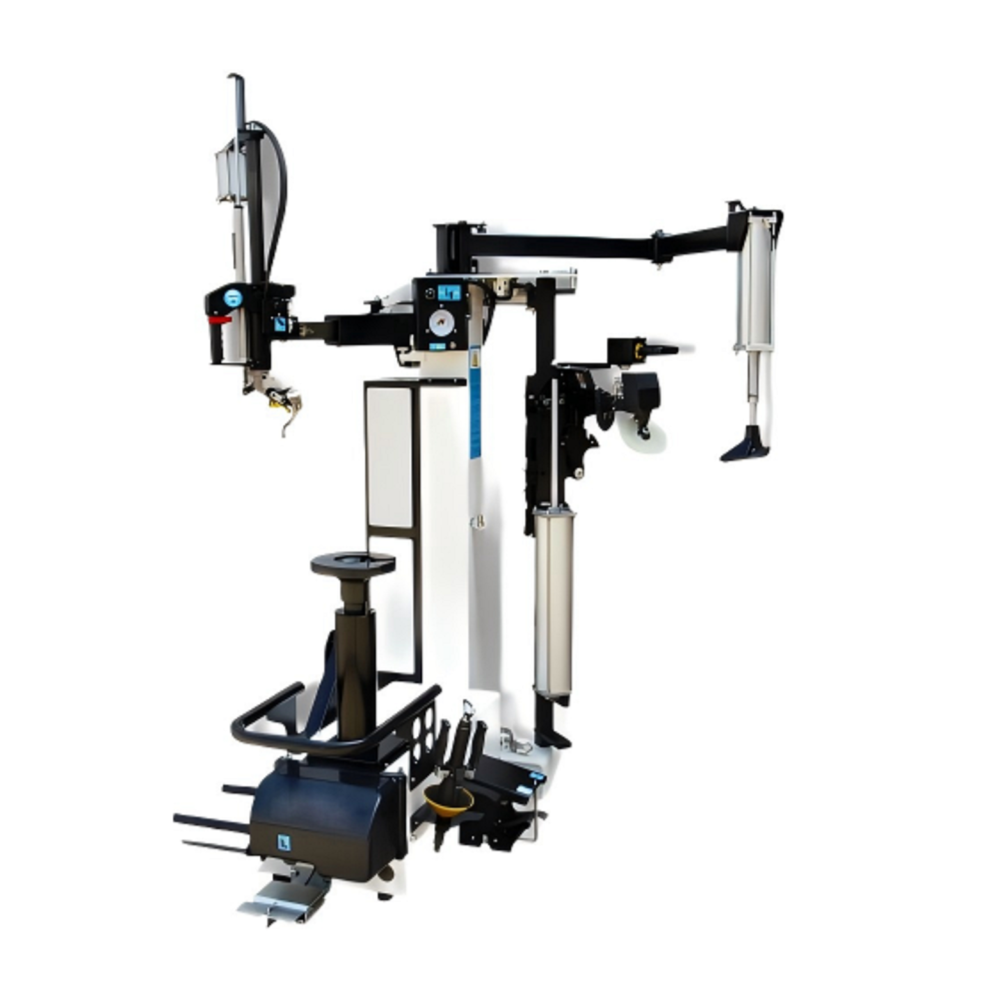

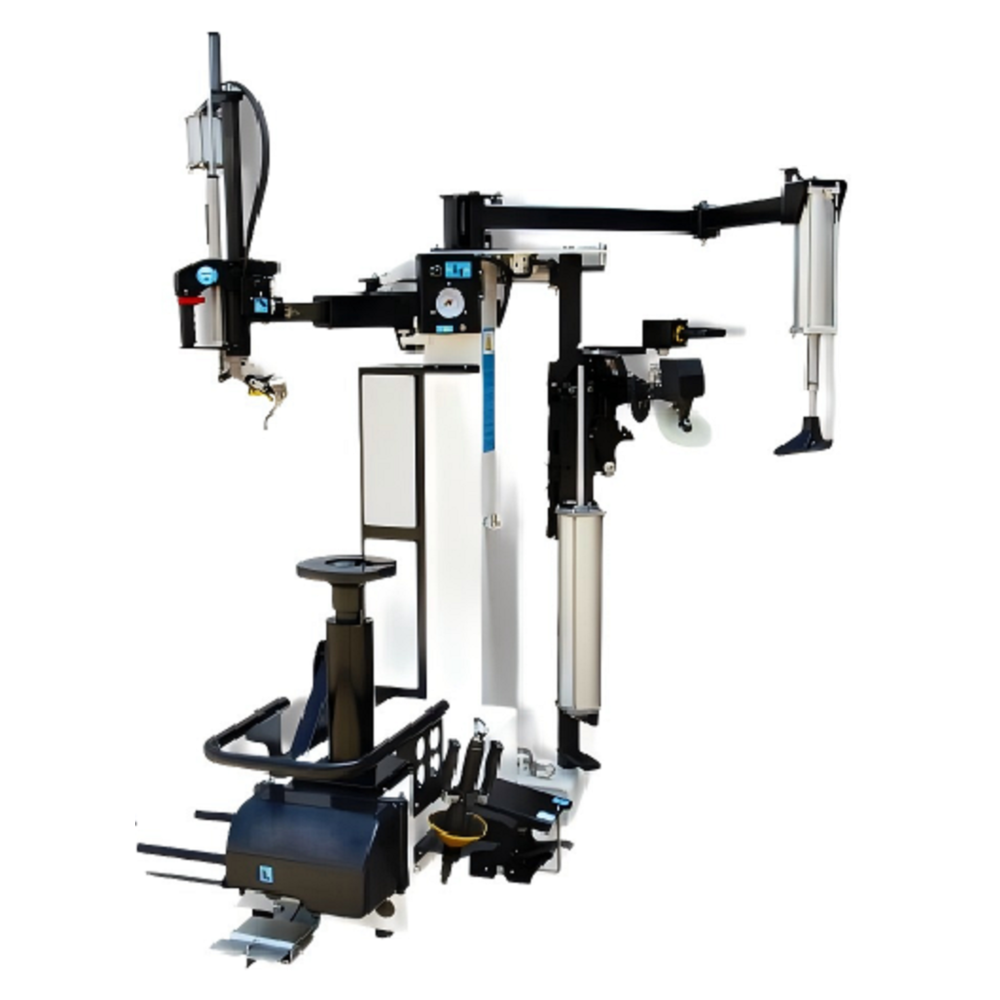

BL598

1. No turntable mechanism: positioned through the tire mounting holes,  by using the cone, spindle, and manual quick locking nut, the tire is locked securely and firmly, without causing idling.
2. The helper arm operates on the working surface of the tire by flipping up and down to avoid flipping the tire. Pneumatic locking, fast and convenient.
3. Position changeable pressing disc: convenient and fast separation of tires from rims. Reverse mounting of tires can be achieved by flipping the pressing head.
4. Master foot pedal integrating air inflation switch and motor control switch. The motor is a dual speed motor, which has low and high speeds for forward rotation and medium speed for reverse rotation. The air inflation switch adopts an advanced pulse inflation valve, ensuring more precise air delivery.
5. The central controller adopts four-way control, integrating the functions of helper arm lifting, lowering, and side swing unlocking, and front/rear unlocking of the tire bead press. Equipped with a tire bead press position change switch.
6. The demount head adopts a pneumatic structure, with its lifting, lowering, and locking actions controlled by a pneumatic valve, which is convenient and labor-saving.
7. The tire carrier adopts a pneumatic lifting structure which is convenient, fast, and labor-saving.
8. Automatic demount head can effectively protect tires. Advanced tire flipping structure, perfectly achieving leverless tire demounting.

Model:
BL598
Motor power:
0.85kw
Power supply:
220V
Max. wheel diameter:
47''(1200mm)
Max. wheel width:
15"(381mm)
Clamping:
13''-30''
Working pressure:
8-10bar
Noise level:
≤70dB
Net weight:
385kg
Goss weight:
400kg

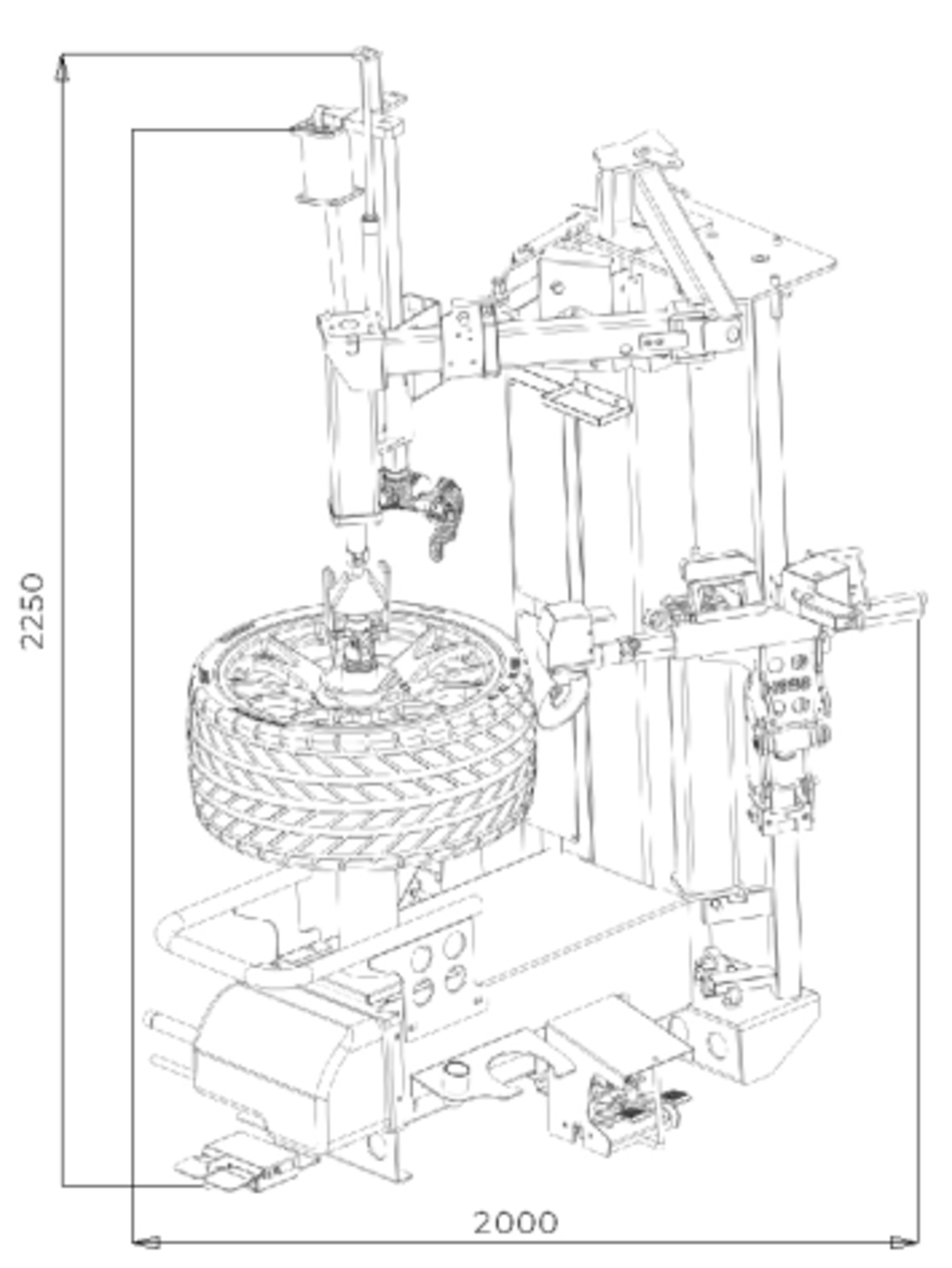

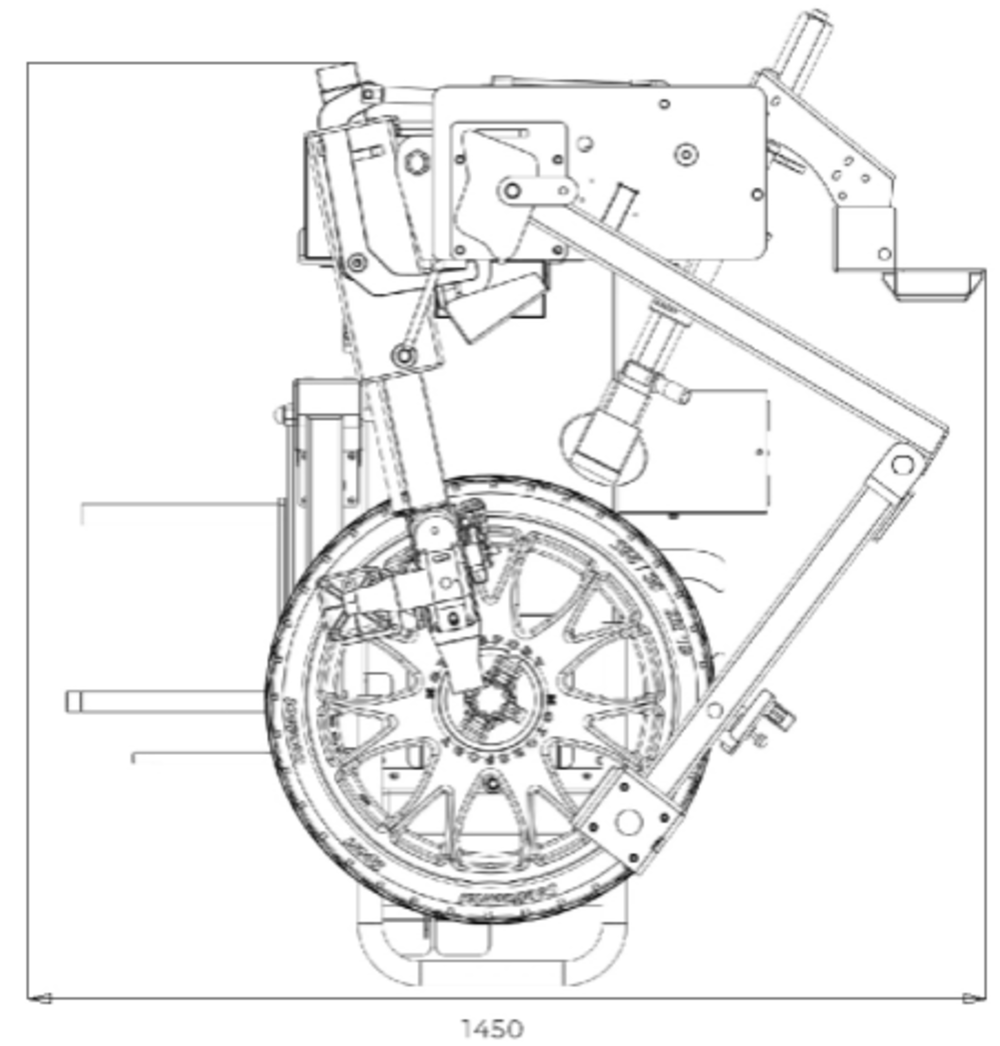

Package size:
1320*770*2000mm
