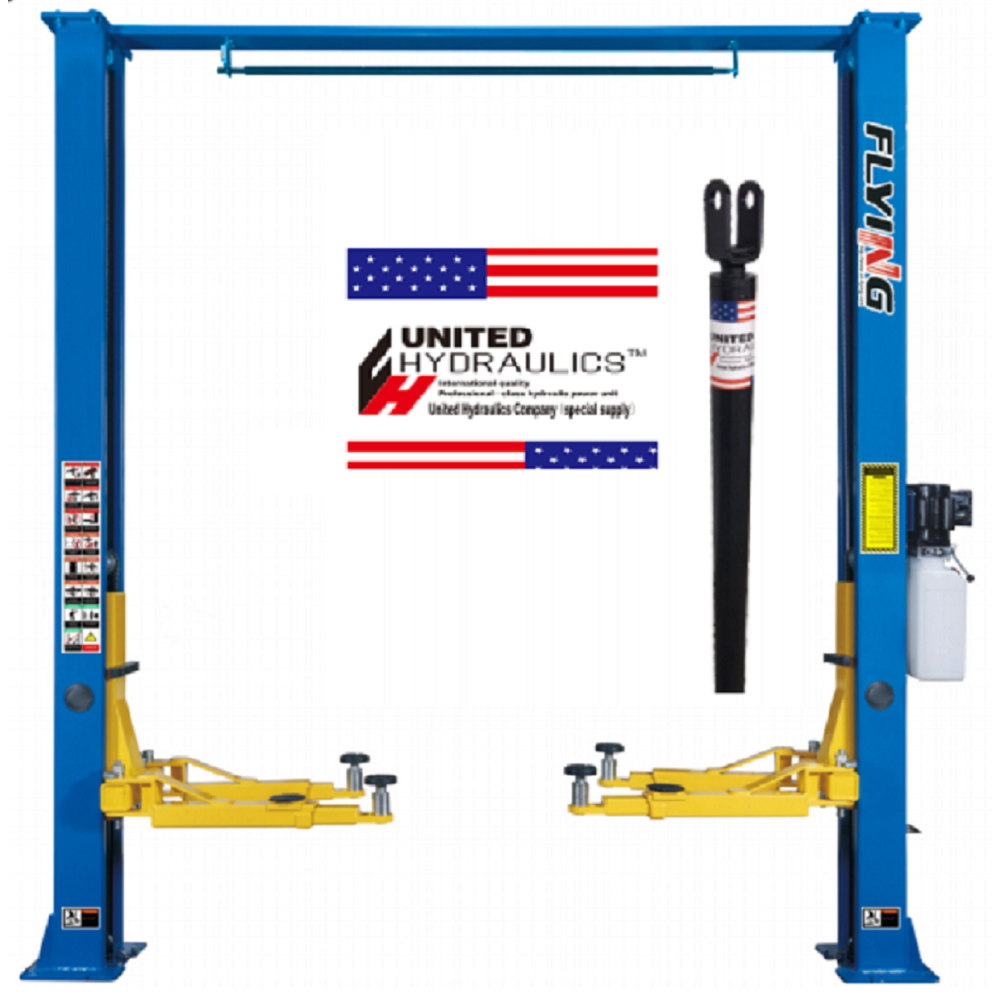

CLEAR FLOOR 2-POST LIFT

Model: T4B

Capacity: 4.0T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Features

1. Screw type lifting pads with 50mm diameter adaptors as standard configuration.
2. Updated new arm lock is equipped with precise gears and self-release design which is reliable and stable.
3. Sliding adaptors as standard configuration to fit various kinds of vehicles.
4. Maintenance window for easy check and maintenance of carriage lock.
5. Equipped with door protectors.
6. The hydraulic cylinder and pump are supplied by USA United-Hydraulics.
7. Ultra low min. height and clear floor design for easy accessing of vehicles.
8. 2-section columns optional.
9. Electrical control box optional.

Technical Parameters
Lifting height1825mm
Overall height3605mm
Overall width3360mm
Arm size
705-1046mm
Arm size
906-1460mm
Pad height
110mm
Width between posts
2800mm
Lifting capacity
4.0T

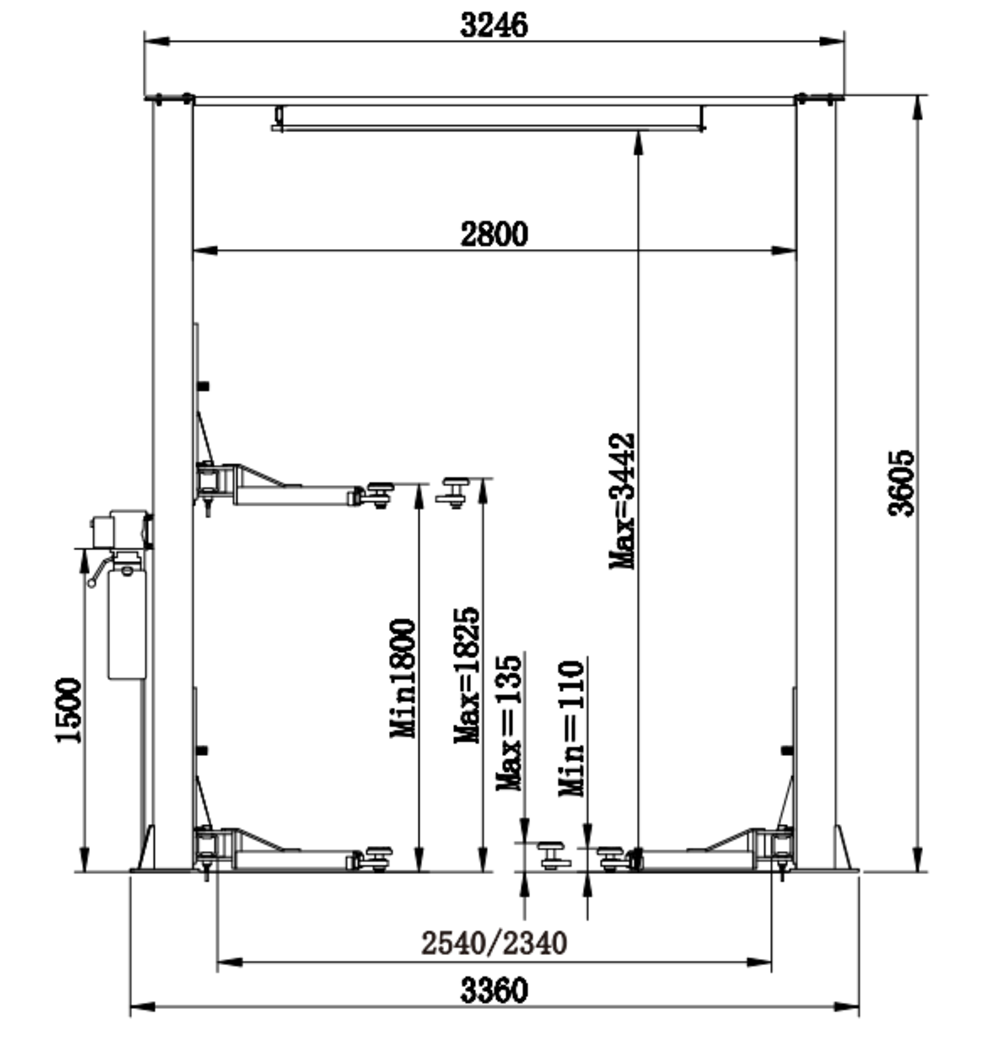

Size Drawing

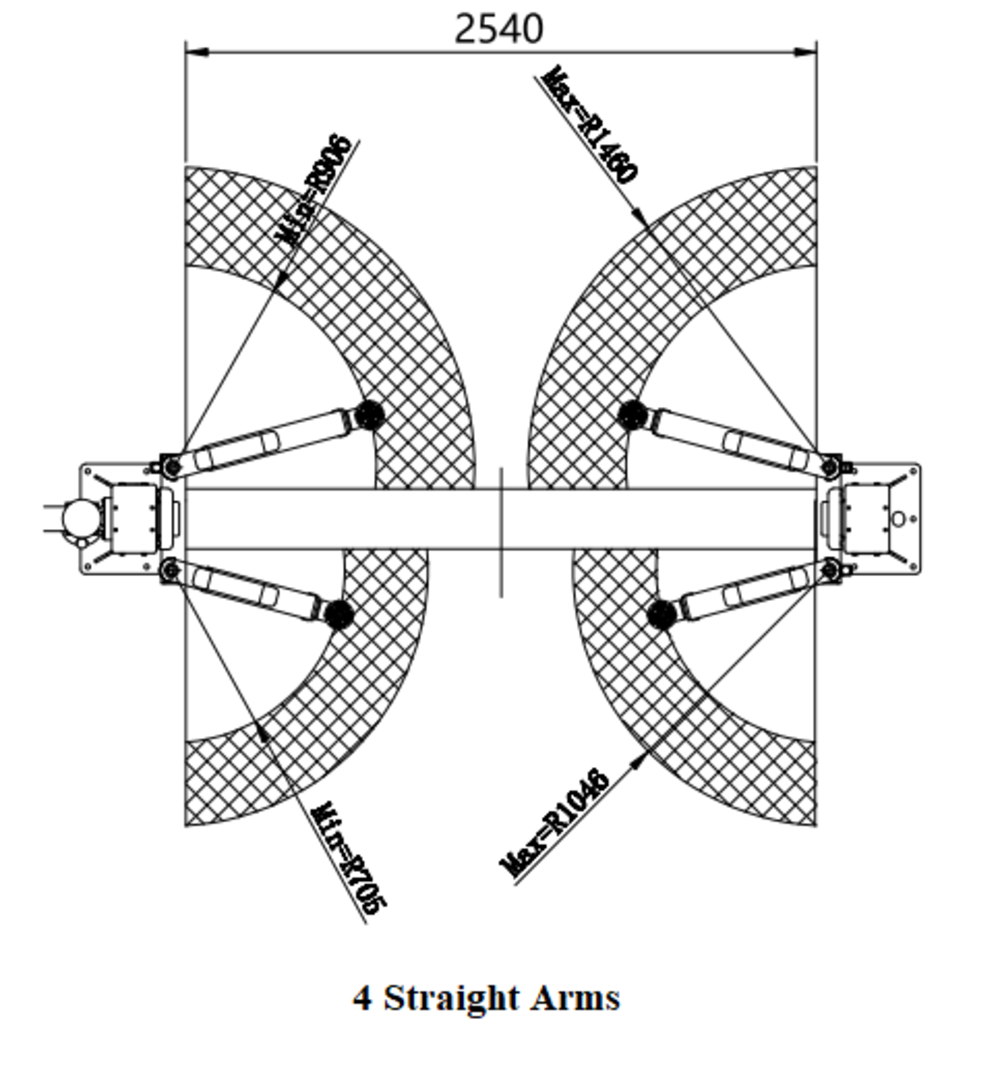

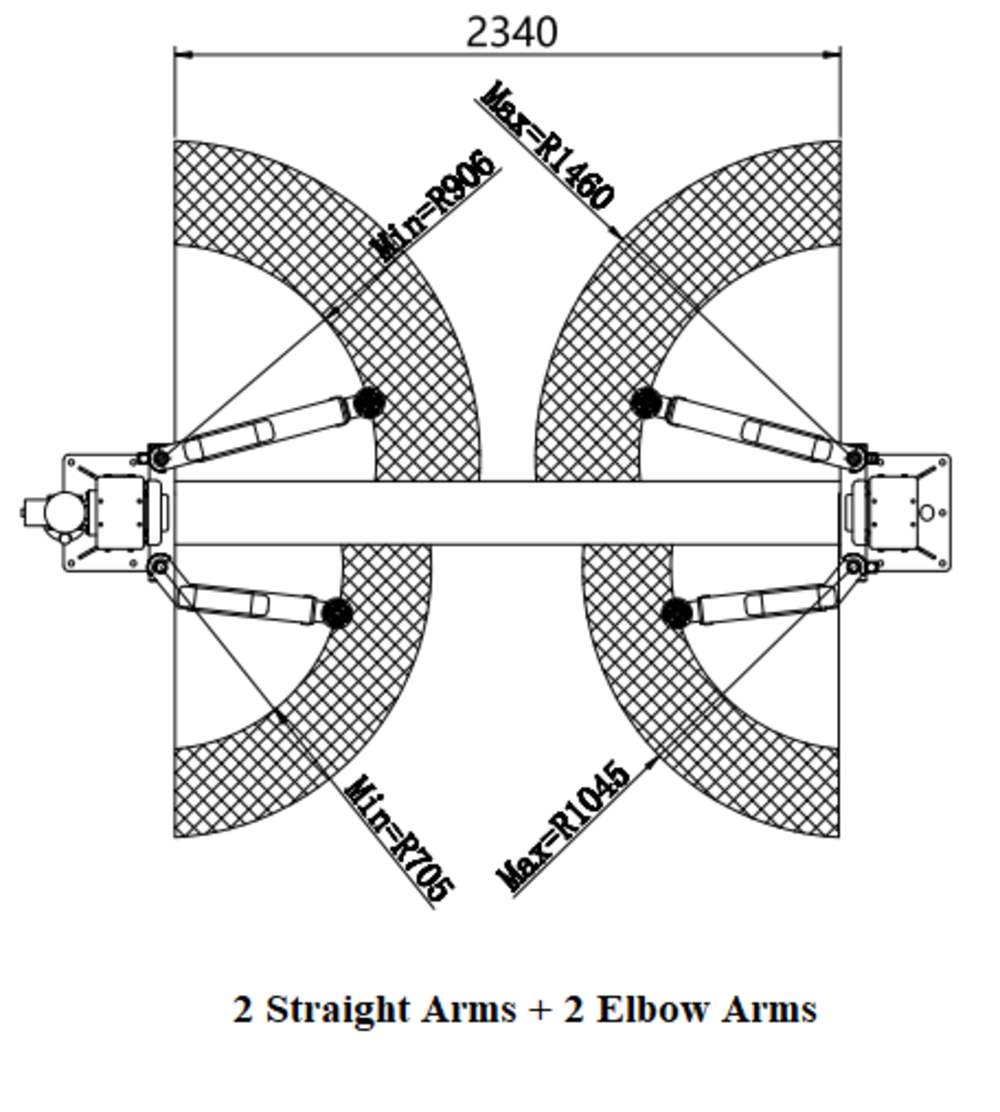

      Two types of arms optional
