Product Detail

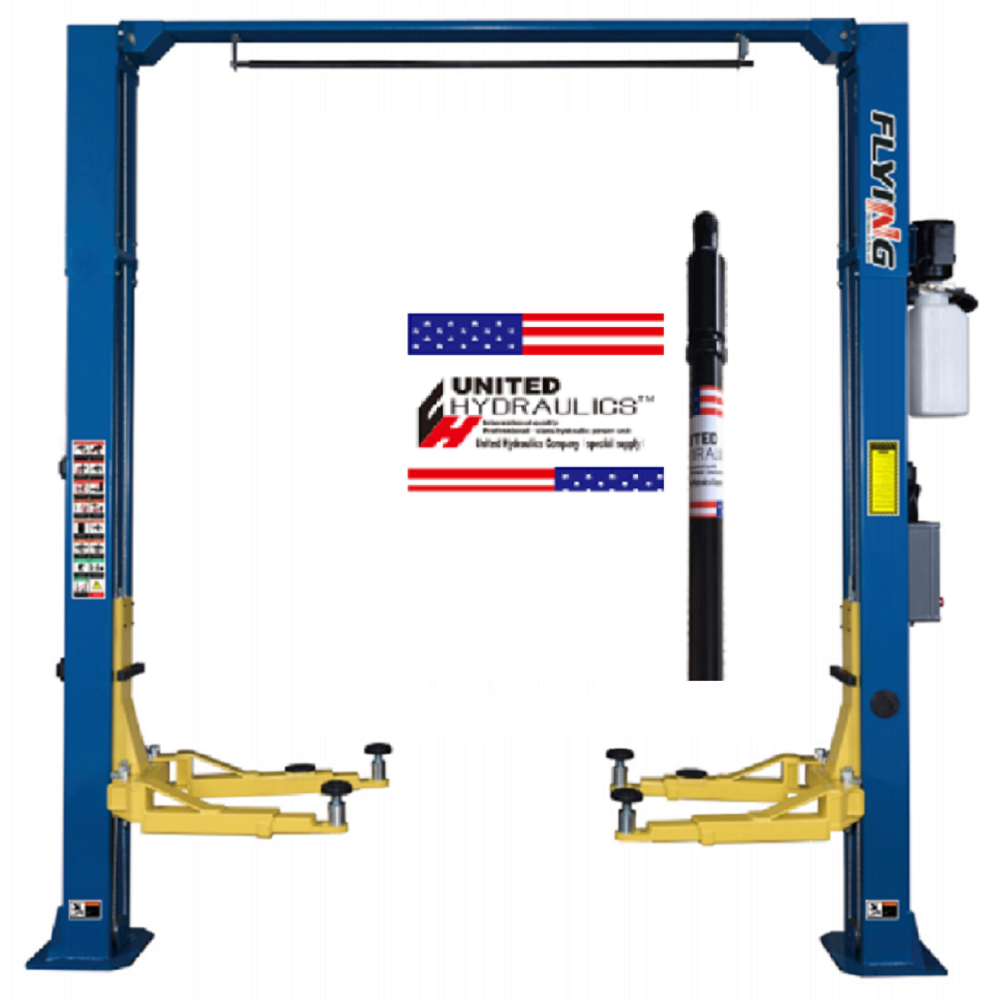

CLEAR FLOOR 2-POST LIFT

Model: S4D-2E

Capacity: 4.0T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Features

1. Screw type lifting pads with 50mm diameter adaptors as standard configuration.
2. Arm lock is equipped with precise gears and self-release design which is reliable and stable.
3. Equipped with 2-stage arms.
4. Equipped with electric control box for operation and lock release.
5. Sliding adaptors as standard configuration to fit various kinds of vehicles.
6. Maintenance window for easy check and maintenance of carriage lock.
7. Equipped with door protectors.
8. Professional-class hydraulic cylinder and pump are supplied by USA United Hydraulic.
9. Ultra low min. height and clear floor design for easy accessing of vehicles.
10. Equipped with direct drive (inversion) cylinder.

Technical Parameters
Lifting height2010mm
Overall height3596mm
Overall width3419.6mm
Arm size
717-1054mm
Arm size
797-1137mm
Pad height
107mm
Width between posts
2799mm
Lifting capacity
4.0T

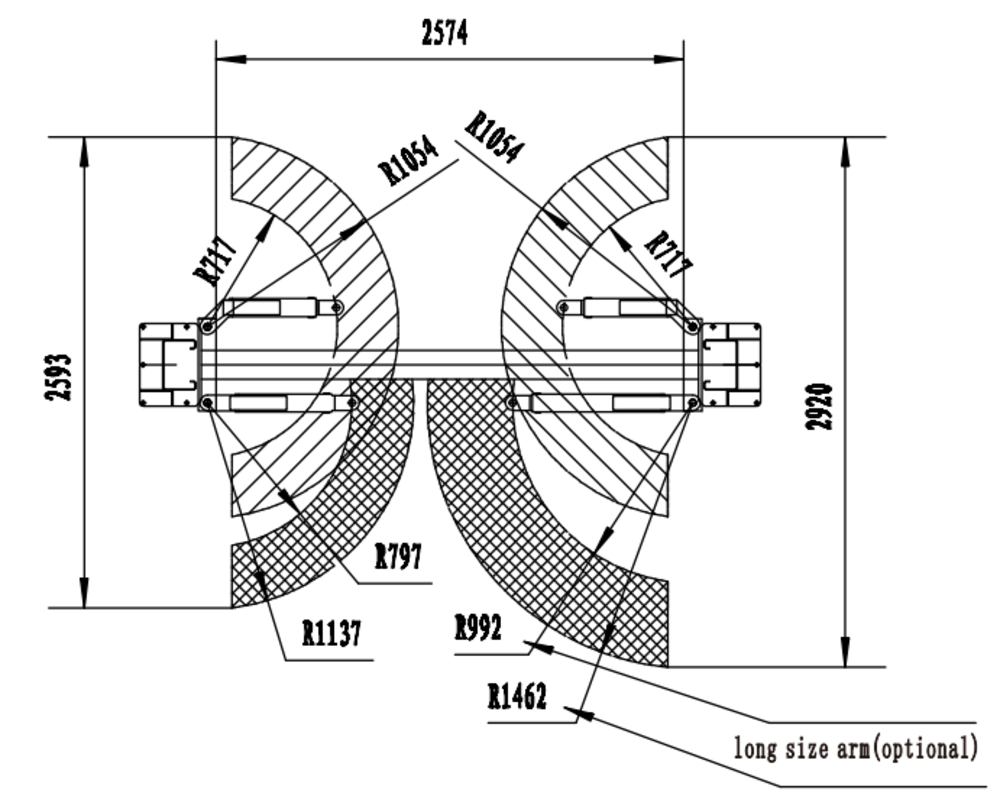

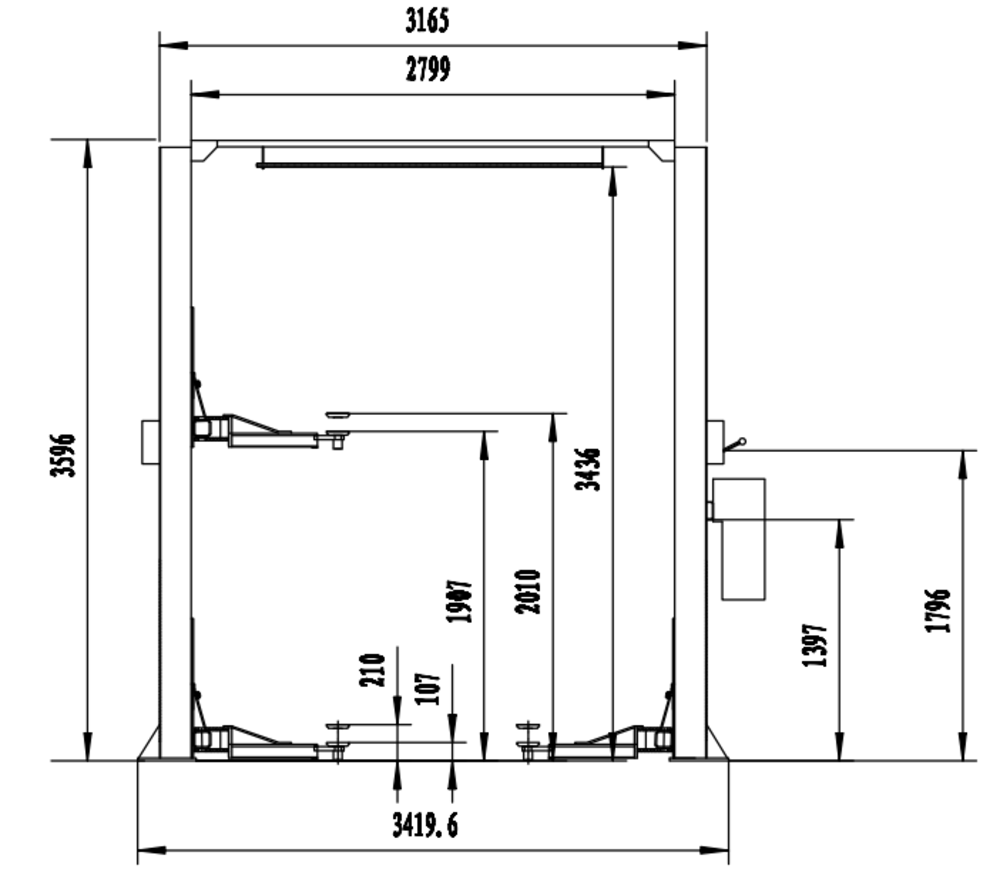

Size Drawing
