Product Detail

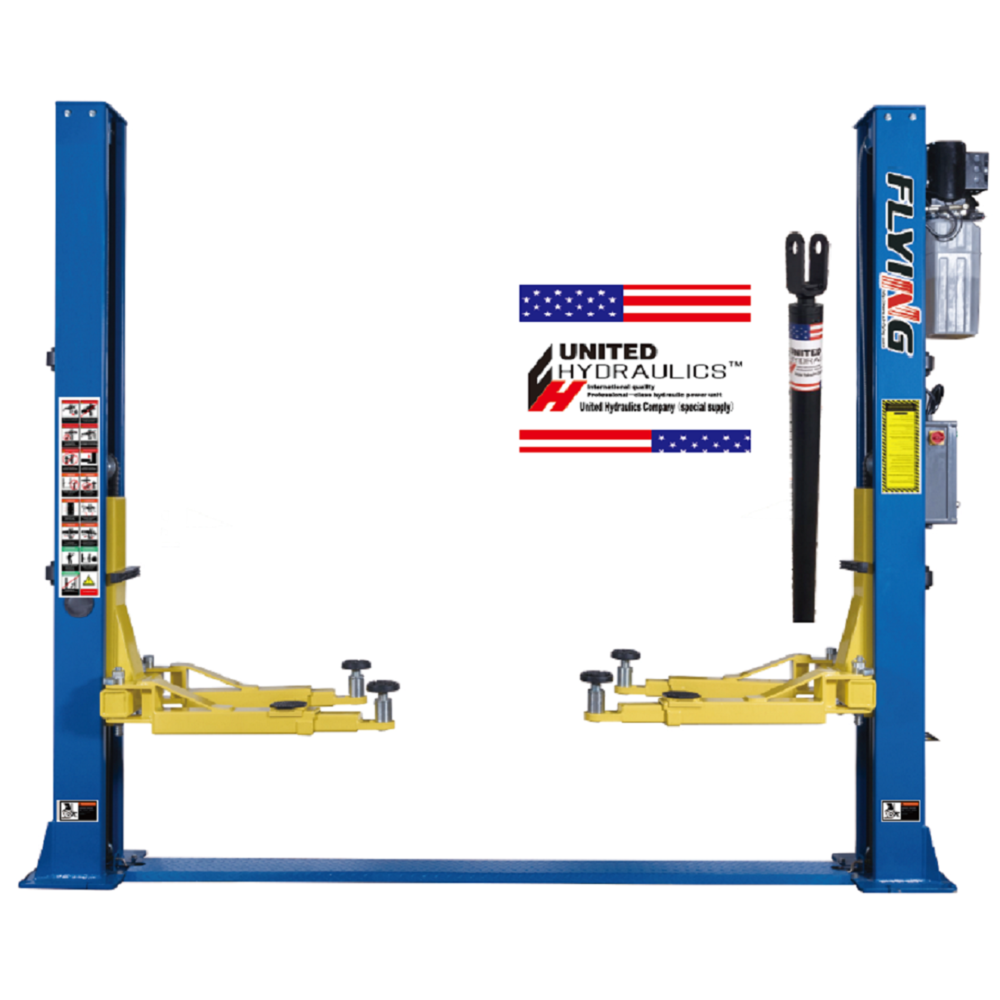

BASE PLATE 2-POST LIFT

Model: T4E

Capacity: 4.0T

Color: RAL5015 & RAL1018 (customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Download Operation Manual.doc

Features
1. Screw type lifting pads with 50mm diameter adaptors as standard configuration.
2. Updated new arm lock is equipped with precise gears and self-release design which is reliable and stable.
3. Sliding adaptors as standard configuration to fit various kinds of vehicles.
4. Maintenance window for easy check and maintenance of carriage lock.
5. Equipped with door protectors.
6. Professional-class hydraulic cylinder and pump are supplied by USA United Hydraulics.
7. Stiffened low profile floor plate with slots inside for fixing and separating cables and oil hoses.
8. Ultra low min. height for easy accessing of vehicles.
9. Equipped with 24V electrical control box.

Technical Parameters
Lifting height1825mm
Overall height2824mm
Overall width3380mm
Drive-thru width2360/2560mm
Arm size
705-1046mm
Arm size
906-1460mm
Pad height
110mm
Width between posts
2820mm
Lifting capacity
4.0T


Size Drawing

Two types of arms optional


                                4 Straight Arms                                                                                2 Straight Arms + 2 Elbow Arms
