Product Detail

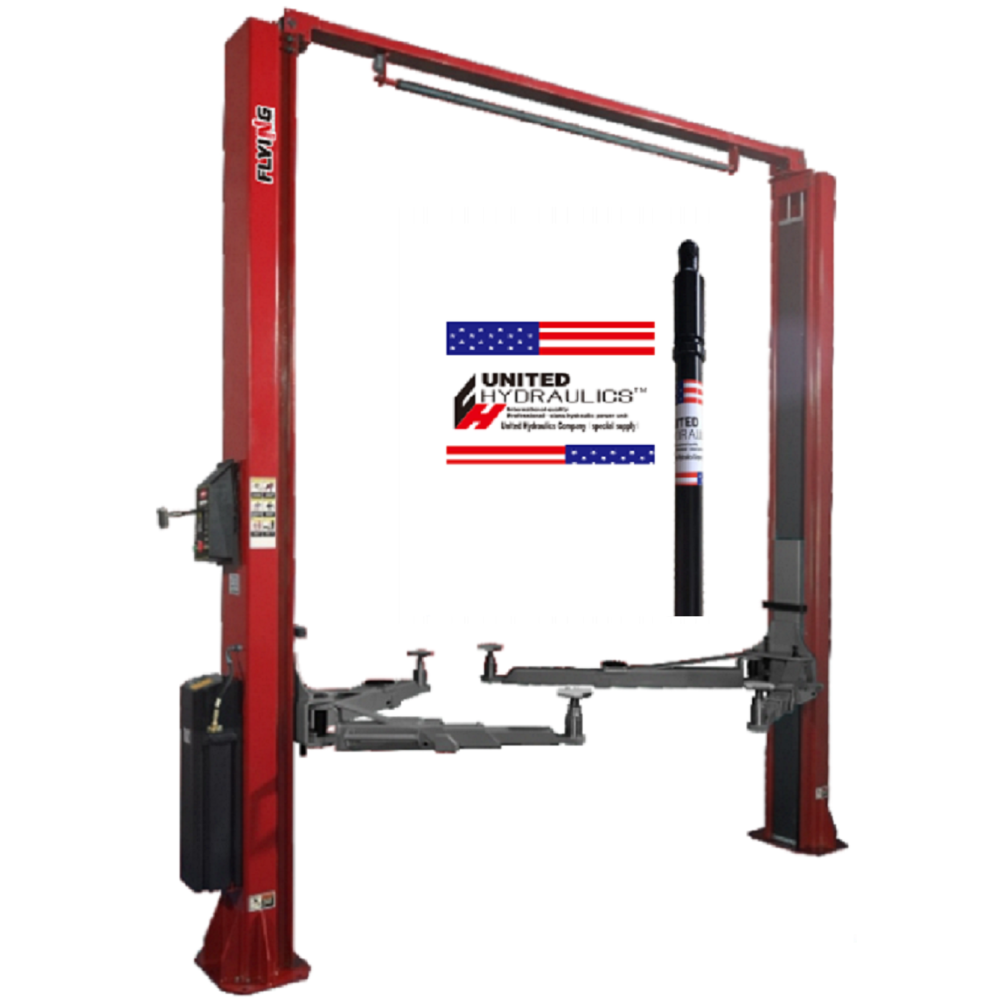

CLEAR FLOOR 2-POST LIFT

Model: TPRO-10S

Capacity: 4.5T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Features

1. Environment-friendly and low noise design.
2. The column can be mounted at 45° degrees, which is suitable for different space options.
3. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength. Reinforcing bars are welded to the bottom of the column for greater strength.
4. Equipped with automatic arm lock release mechanism, with more security and high strength. Equipped with new locking teeth for stronger engagement.
5. The back of the carriage is welded with a lifting bar, which is locked with the locking hook of the main and secondary column, making it safer and more reliable.
6. Equipped with auto-manual single-point safety release. The lifting and lowering was operated with only one hand, with simple and convenient operation.
7. Symmetric arms design, optional 2+3-stage or 3+3-stage lifting arms, which can meet more maintenance needs.
8. Equipped with a power unit with low power consumption, high efficiency, less failure and low noise.
9. Equipped with an oil-immersed motor. The motor and oil pump work in hydraulic oil, which prolongs the working life of the motor and oil pump.

Technical Parameters
Lifting height100-1970mm
Overall height3660mm
Overall width3392mm
Drive-thru width2516mm
Arm size
(3)550-1105mm
Arm size
(2)876-1472mm
Width between posts
2830mm
Lifting capacity
4.5T

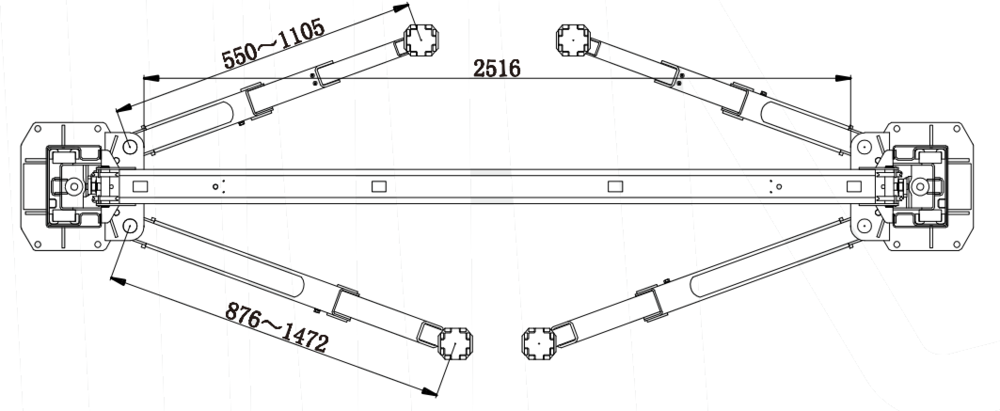

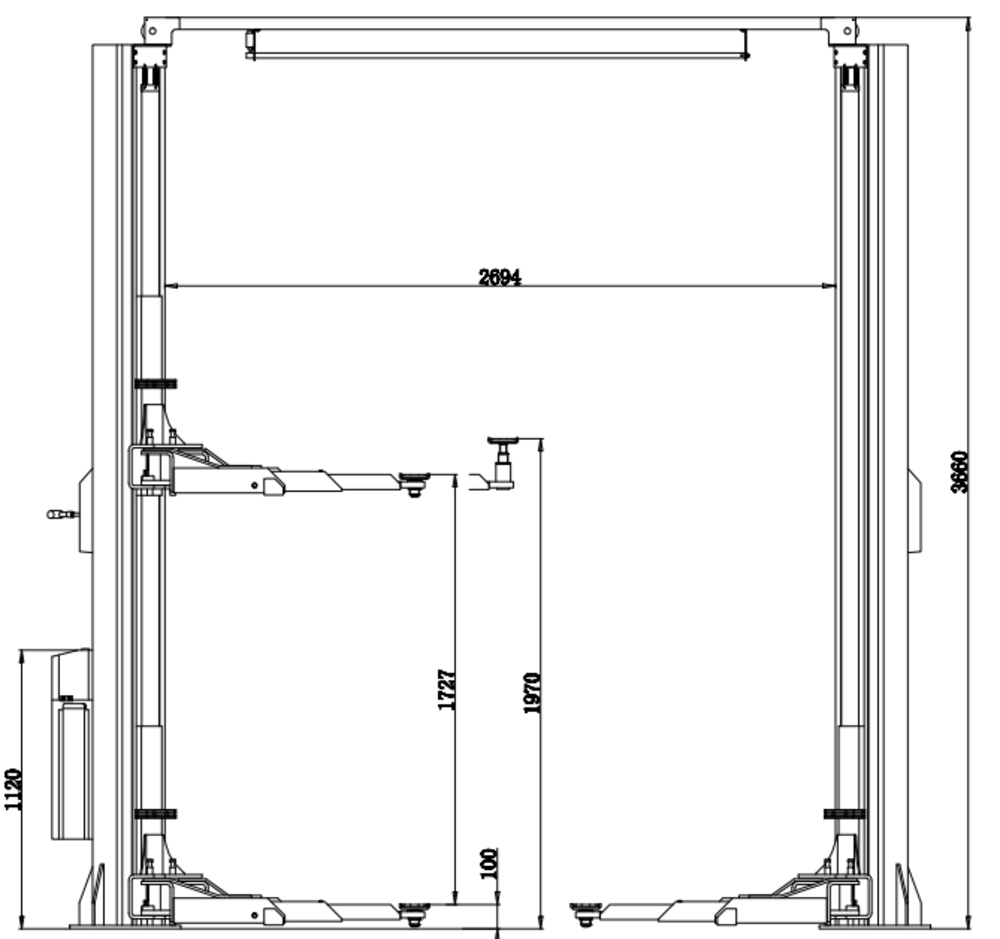

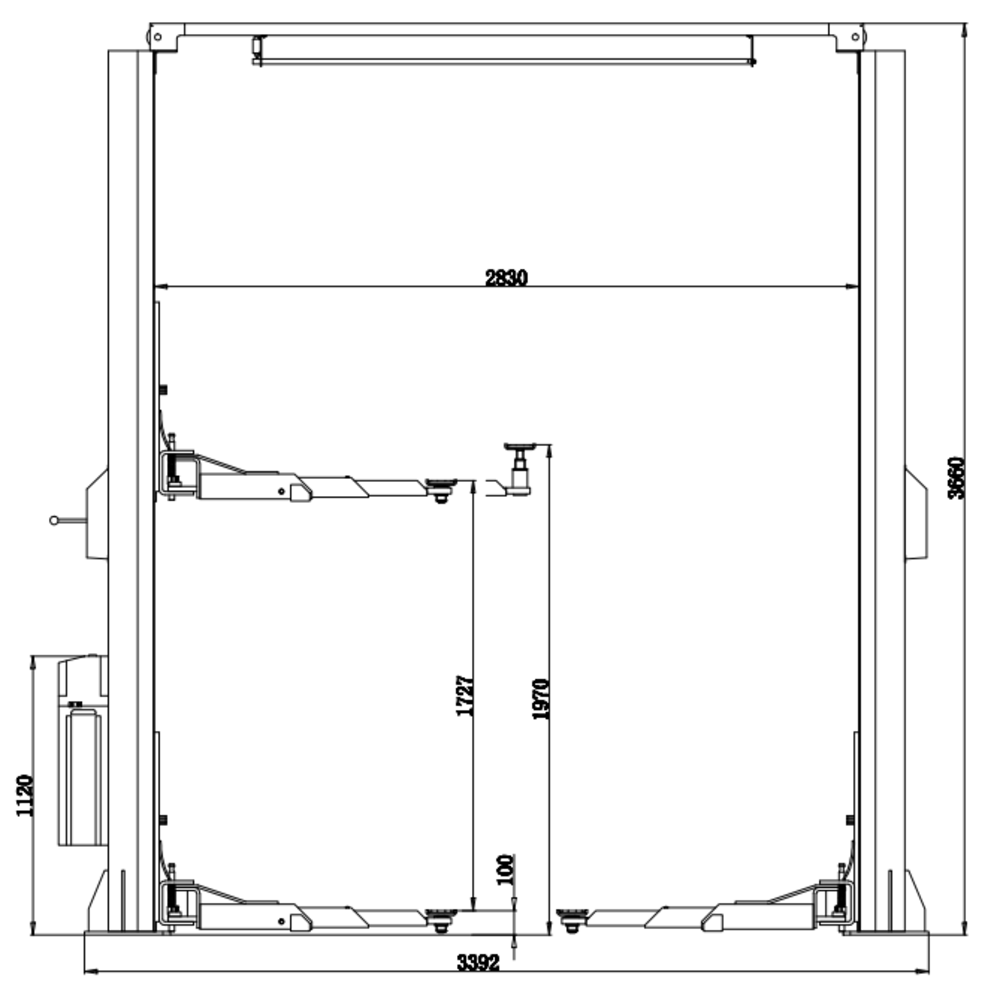

Size Drawing

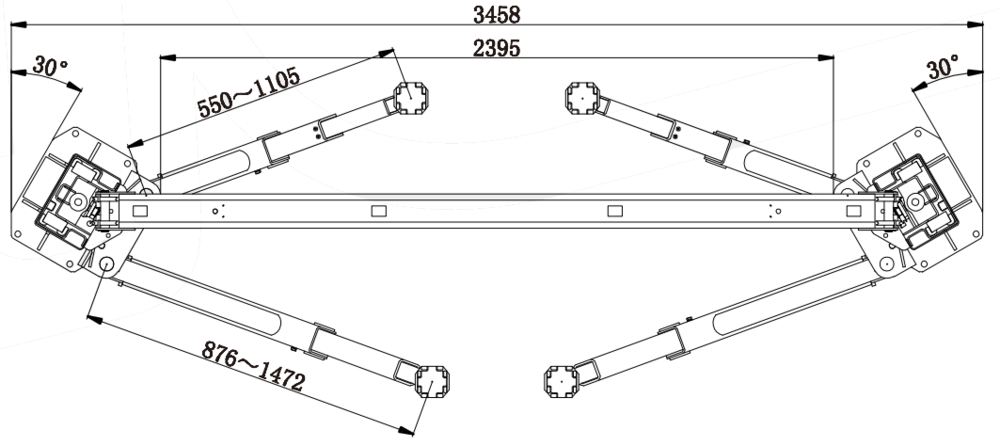

                                                                                                                                         45° Mounted
