Product Detail

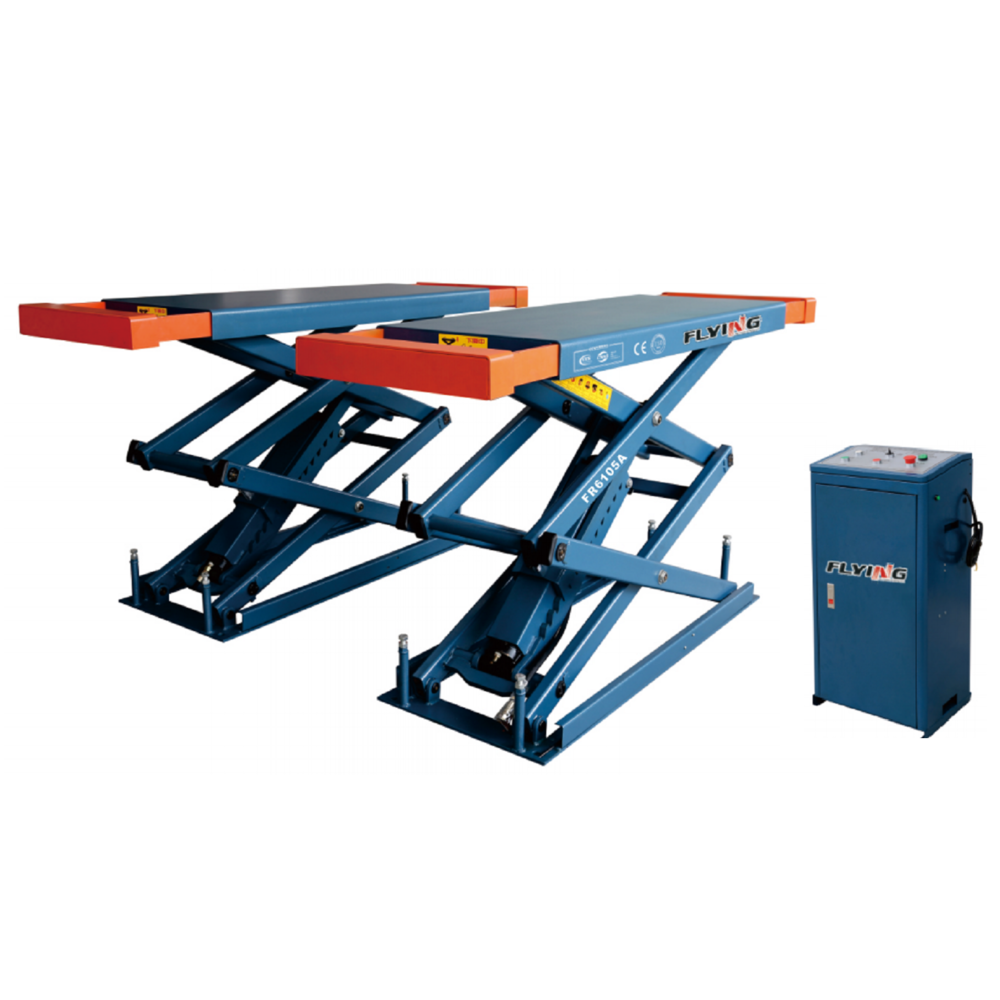

1. This model is in-ground mounted and is mainly composed by two lifting platforms, two base plates, two oil cylinders and a set of power unit.
2. The platform extension deign may be used as an extended part of the platform for much longer vehicles.
3. All the hydraulic cylinder are imported form Taiwan. All the motor pumps and seal kits of cylinder are imported form Italy.
4. Inside of cylinder assy has the special treatment and make sure that it doesn't leak oil.
5. Equipped with 24V working voltage of control box, limit switch, alarming buzzer, pneumatic safety lock, anti-surge valves, etc, which have fully considered your personal security.
6. While switch is addedary, it can be controlled remotely

Capacity 3.0Tons
Lifting height: 300-2000mm
Platform length: 1650-2070mm
Platform width: 540mm
Between platform width: 850mm

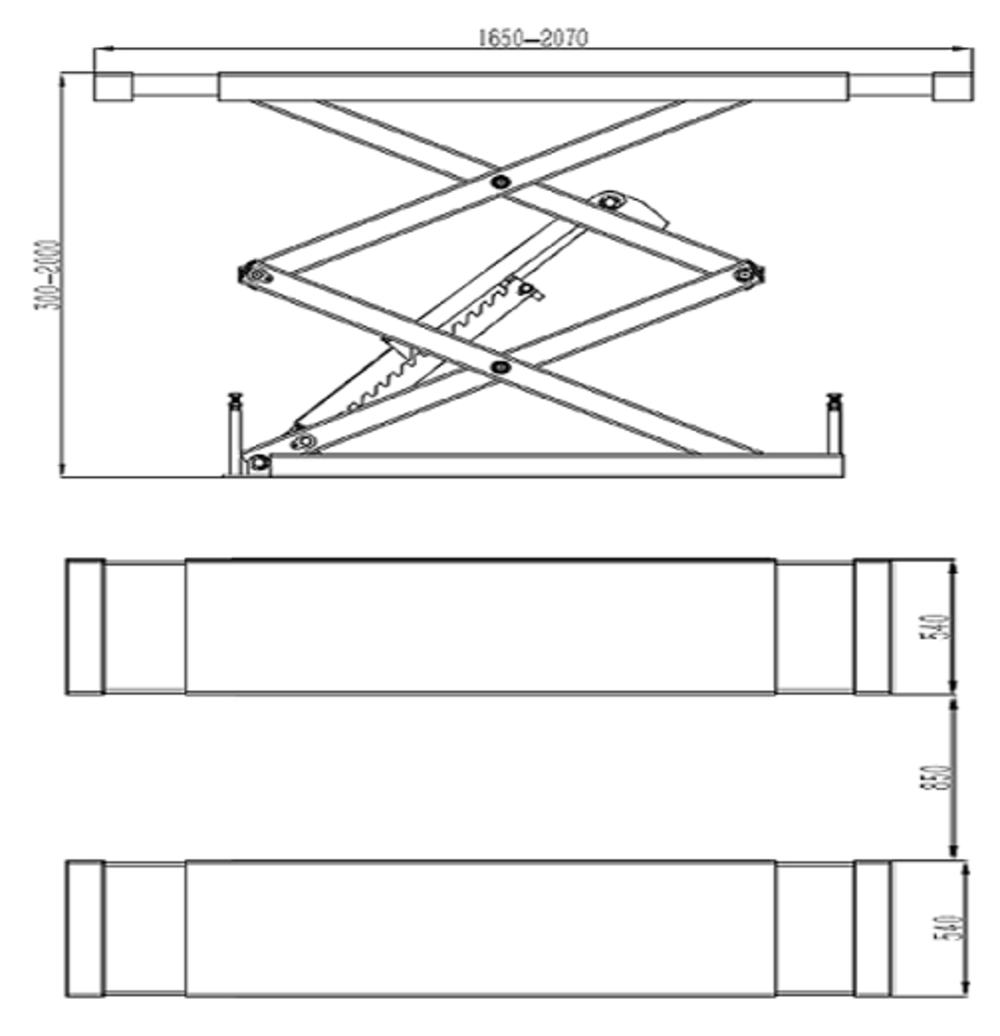

Overall diagram
