Product Detail

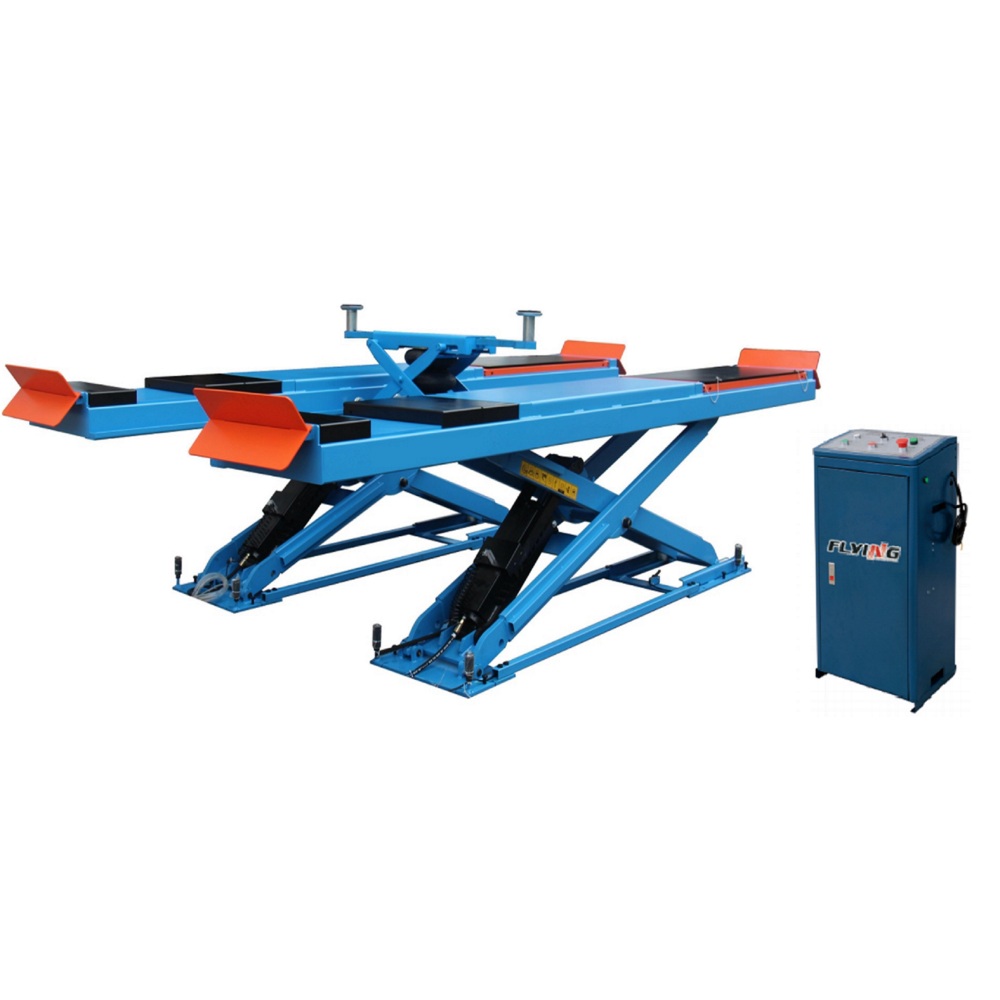

4.0T SCISSOR LIFT

Model: FR-6109

Capacity: 4.0T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

1.Turnplates are mobile to fit various kinds of cars.
2. All the motor pumps and seal kits of cylinder are imported from Italy.
3. All the hydraulic cylinders are imported form Taiwan.
4. Inside of the cylinder assembly has special treatment to make sure it doesn't leak oil.
5. 24V control system and limit switch.
6. Equipped with a long distance controller for remote control.
7. Secondary jack optional.

Capacity4.0T
Lifting height110-1850mm
Platform length5000mm
Platform width630mm
Width between platforms900mm

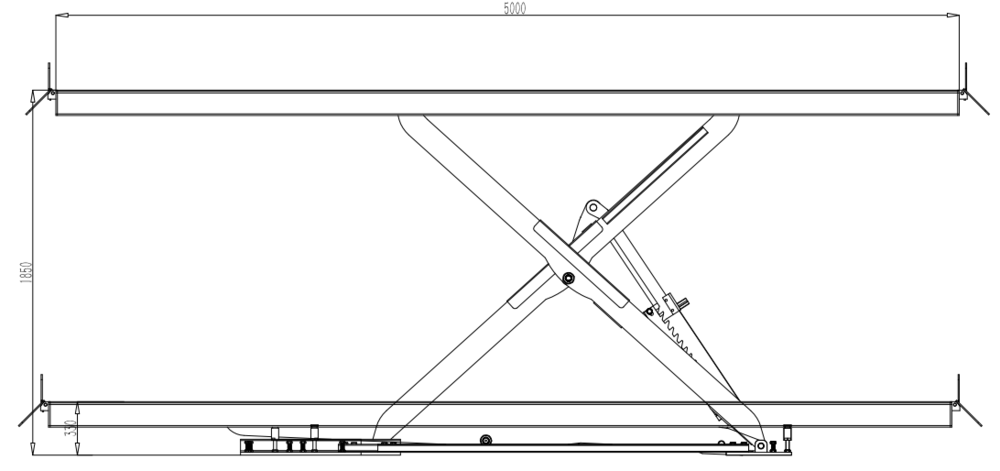

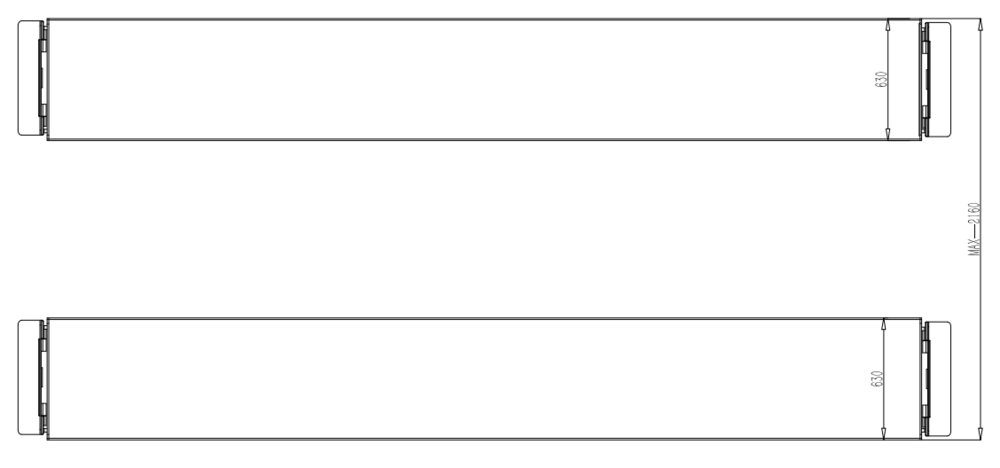

Size Drawing
