Product Detail

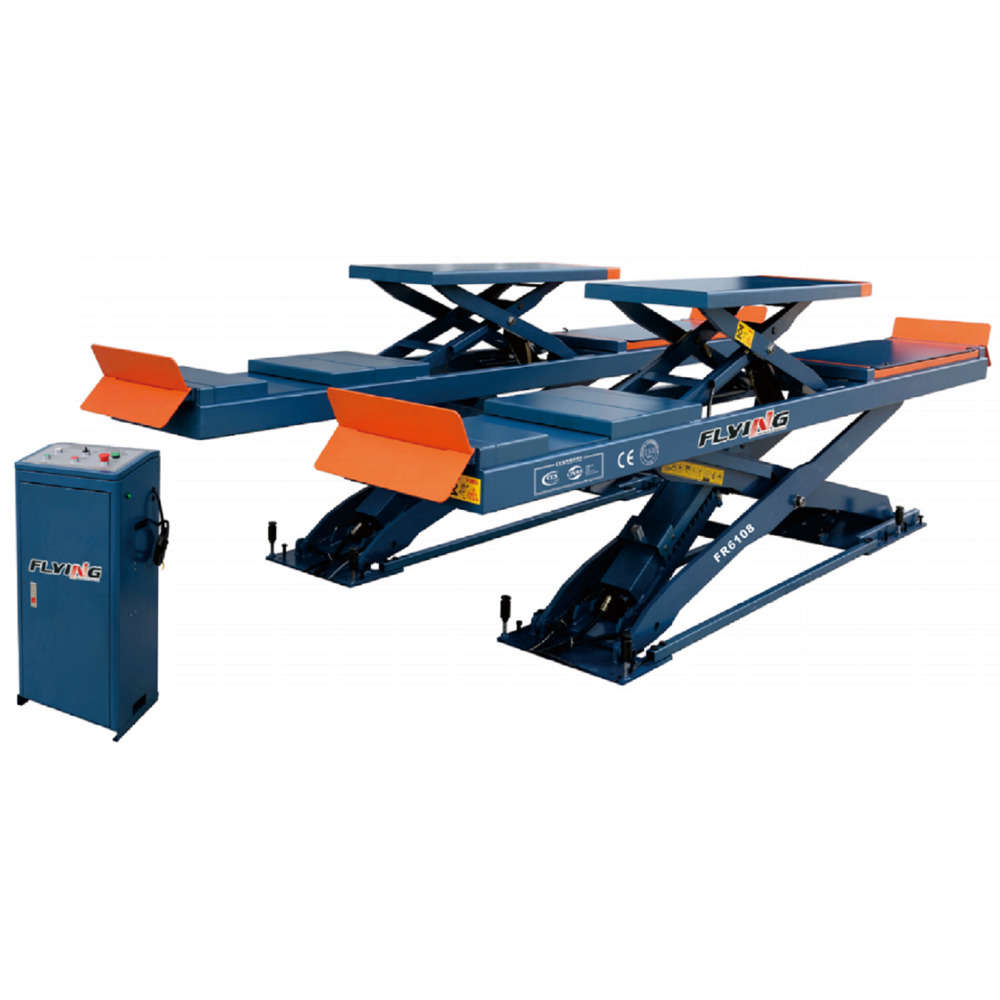

4.5T WHEEL ALIGNMENT SCISSOR LIFT

Model: FR-6108A

Capacity: 4.5T

Color: RAL5005 & RAL3002(customized according to customer's requirements)

Voltage: 380V/50Hz/3P or 220V/50Hz/1P (special voltage requires extra costs)

Share:

1. Underground installation.
2. All the motor pumps and seal kits of cylinder are imported from Italy.
3. All the hydraulic cylinders are imported form Taiwan.
4. Inside of the cylinder assembly has special treatment to make sure it doesn't leak oil.
5. 24V control system and limit switch.
6. Equipped with a long distance controller for remote control.

Capacity4.5T
Lifting height330-2000mm
Platform length4500mm
Platform width630mm
Width between platforms850-900mm

Size Drawing
