Product Detail

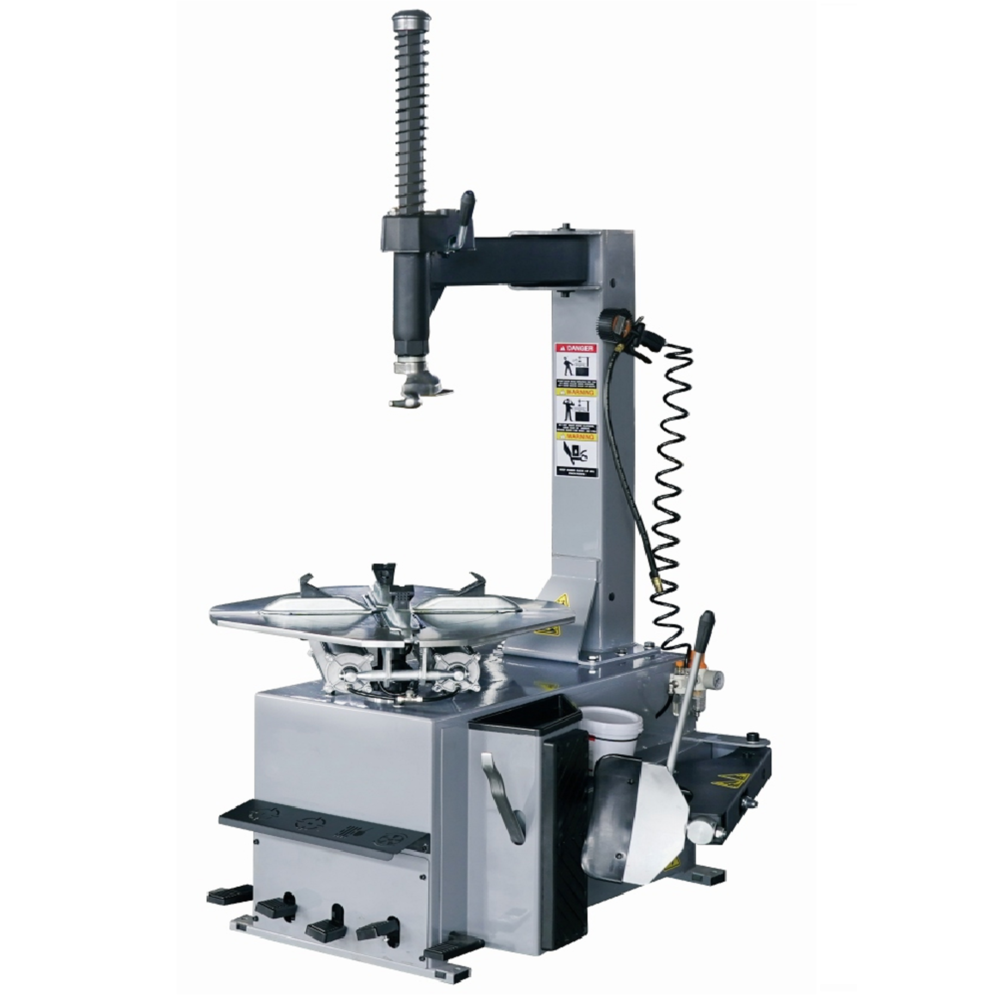

Semi-automatic side swing arm
Innovative, luxury appearance.
Easy operation.
High strength.
Superior quality, perfect design.
| Features | |||||||
| Bigger and thicken machine cabinet suitable for big tire. Enlarged 26'' turntable greatly increase the working strength. Manual locking tyre demounting arm is convenient and quick. Equipped with high power motor, which increases tyre demounting/mounting efficiency. Four angle directional adjustable tyre pressing shovel is suitable for pressing various low profile tyres from different angles.. | |||||||
| Technical specification: |
| Motor power: | 0.75Kw/1.1kw |
| Power supply: | 220V/400V/110V |
| Max. wheel diameter: | 45'' (1143mm) |
| Max. wheel width: | 16''(406mm) |
| Inside clamping: | 12''-23'' |
| Outside clamping: | 14''-26'' |
| Air supply: | 8bar |
| Bead breaker force: | 2500kg |
| Noise level: | <75dB |
| Weight: | 240/216Kg |
| Package size: | 1130*900*1080mm |
