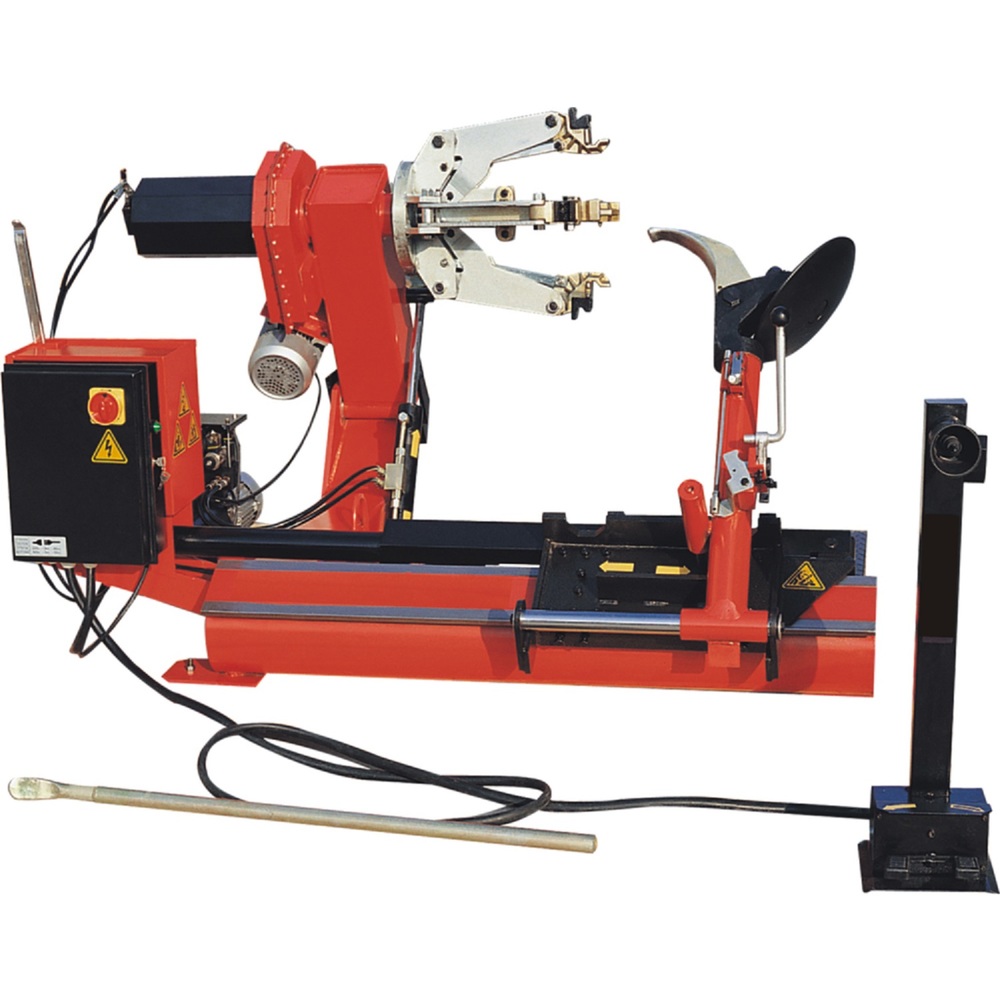

TRUCK TIRE CHANGER
Concentrating on truck tire services for over 15 years, with constant improving and updating, it now becomes professional equipment for mounting and demounting of truck and bus tires.
1. Semi-automatic truck tire changer, universal self-centering system, reliable rim clamping, with stable movement.
2. Hydraulic pump station adopts good quality components, which meet CE requirements, stable and safe during the operation.
3. Equipped with movable low voltage control handle for easy and convenient operation.
4. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance. The electric cabinet adopts CE level protection standards.
5. The lifting arm and base are made of reinforced thickened metal, with high strength.
2. Hydraulic pump station adopts good quality components, which meet CE requirements, stable and safe during the operation.
3. Equipped with movable low voltage control handle for easy and convenient operation.
4. The gearbox is made by aluminum alloy die casting, with light weight, beautiful appearance, high strength and good sealing performance. The electric cabinet adopts CE level protection standards.
5. The lifting arm and base are made of reinforced thickened metal, with high strength.
| Rim diameter： | 14''-16'' |
| Max. wheel width： | 780mm |
| Max. wheel diameter： | 1600mm |
| Max. wheel weight: | 500kg |
| Hydraulic station motor power: | 1.5KW 380V/3PH 50HZ |
| Main shaft motor power: | 1.8KW 380V/3PH 50HZ |
| Noise: | <75dB |
| Packing dimensions: | 2100x1650x930 mm |
| Net weight: | 520kg |
| Gross weight: | 650kg |
| Loading in 20/40 Ft.container: | 12/27 sets |
