Wheel aligment 4-post lift
Equipped with sliding plates, 2.0Tons Rolling Jack and Pneumatic lock system
Optional with turntable
Optional with 24V control box

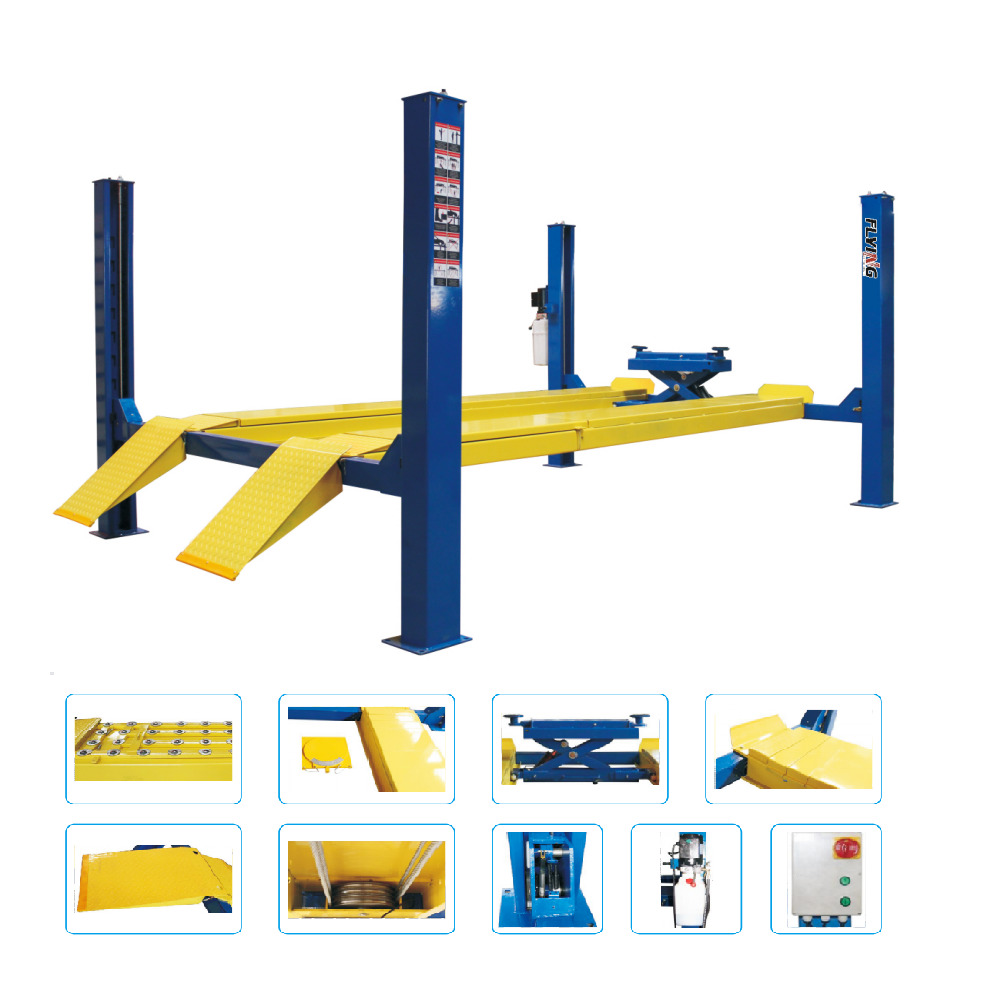

3.5Tons Four-post lift with integrates inspection, maintenance and wheel aligment functions.
1. Drived by hydraulic cylinders and transmitted by steel cables, the working environment is quiet.
2. The sliding plates are supported by ball bearing which are smooth and stable.
3. Movable plates area used for turntables. The turntables are optional.
4. Equipped with 2.0Tons electric rolling jack for a secondary lifting.
5. Equipped with pneumatic safety lock, which can be locked at any required height to operate, safe and reliable.
6. Equipped with high quality power unit
7. Runways are equipped with wheel stop for safe operation. The level of the runway plate in the locked position can be adjusted to meet the needs of precise inspection, reparation and parking.
8. Long ramps are protected with protectors.
9. Double pulleys can lessen carrying capacity and make sure cables are horizontal.
10. Otional with 24V control box.
11 Depending on differenct needs, you can also choose the common type(without sliding plates, rolling jack and turntable), which is only used for the inspection and repair purposes.

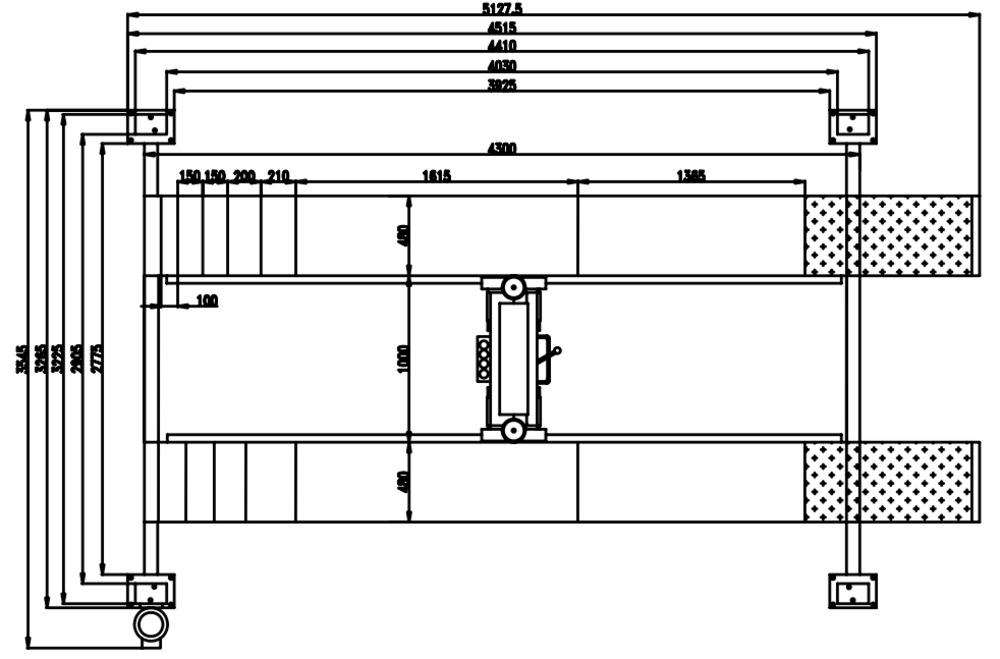

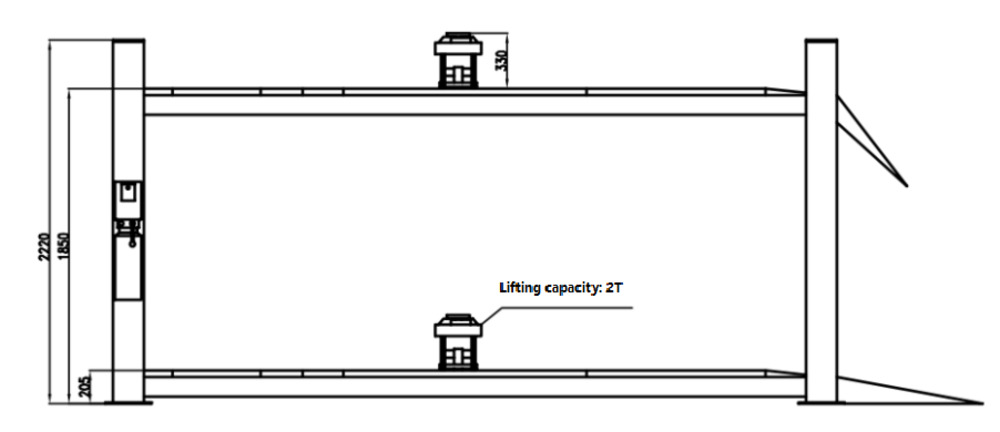

Overall Height: 2220mm Runway Length: 4300mm
Lifting Height: 1850mm Runway Width: 480mm
Overall Width: 3545mm Runway Inside Pitch: 1000mm
