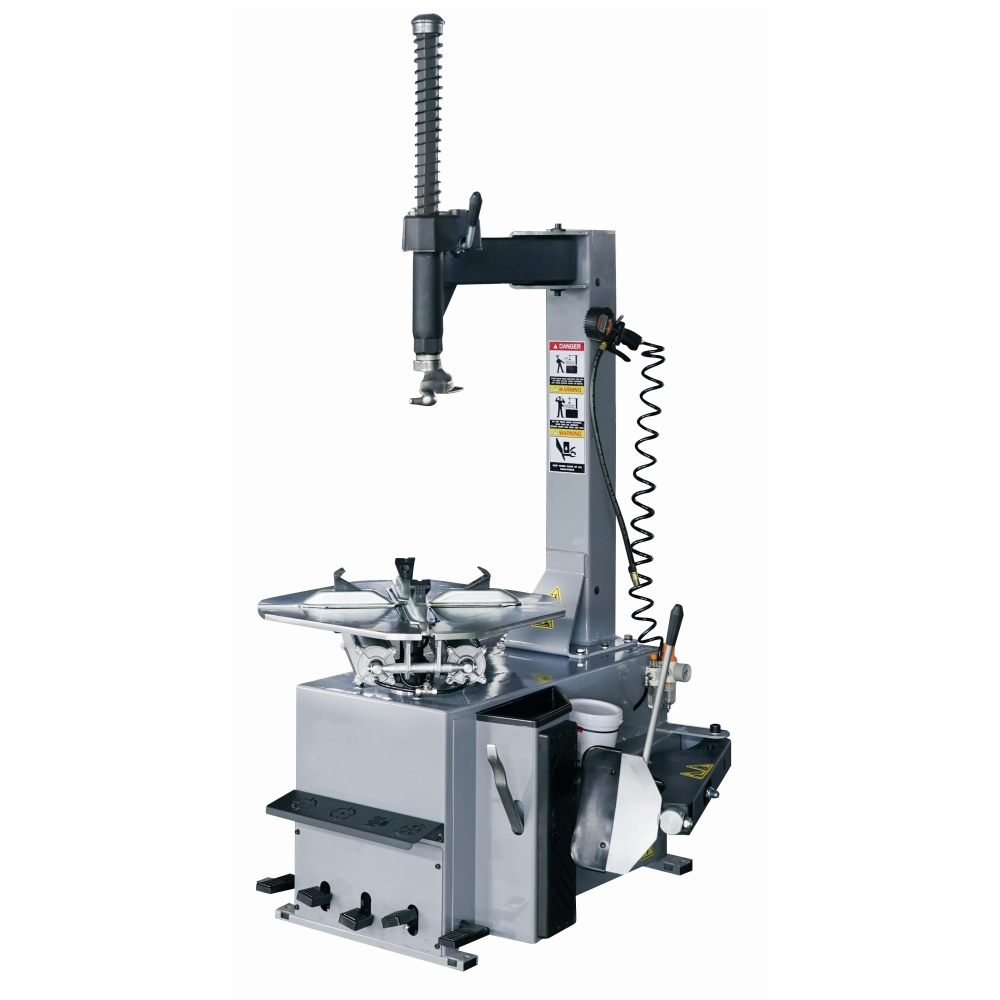

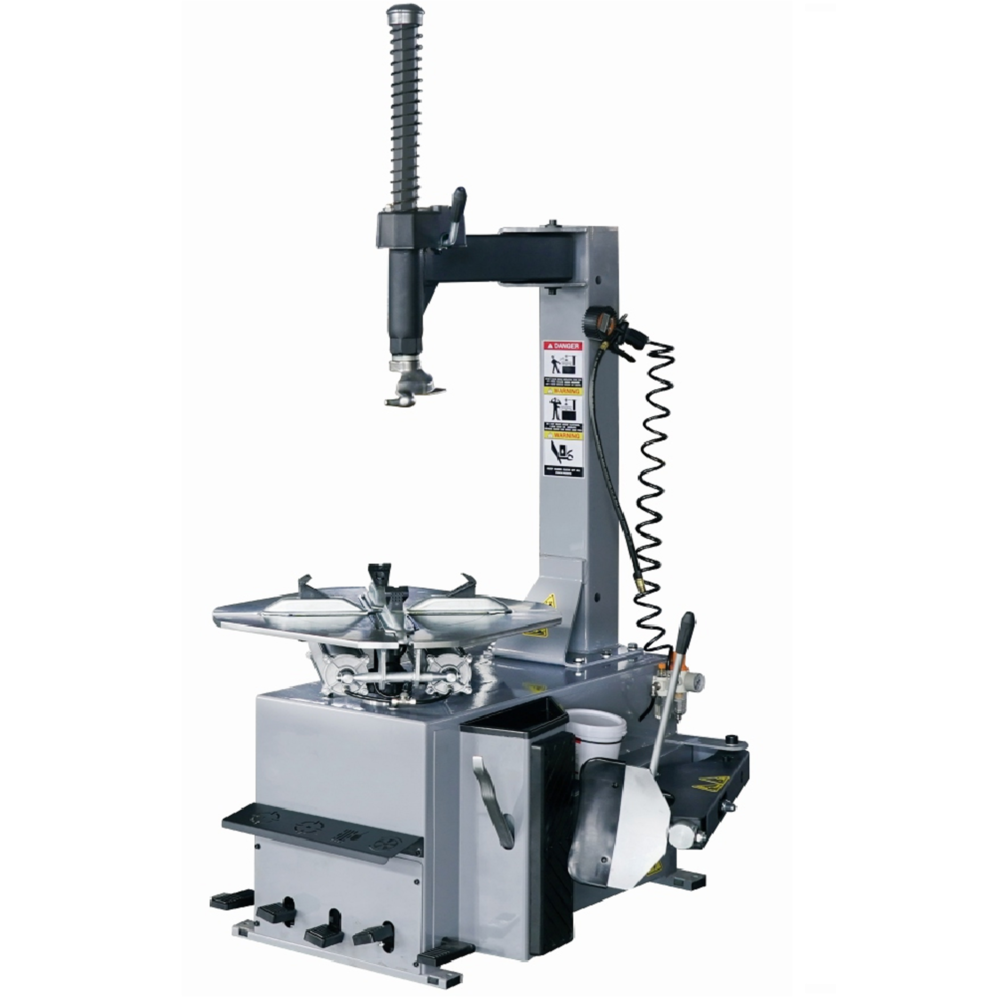

BL523

1. Semi-automatic, suitable for cars, motorcycles and passenger cars. The manual locking vertical arm is convenient and quick.
2. The demounting head is made of white steel, with high strength and more durable. Equipped as standard with complete mount/demount head protectors.
3. Equipped as standard with a 24'' working plate (26'' working plate optional) with precision-cast steel jaws,which increases the working strength..
4. Equipped as standard with non-slip and durable jaw protectors, which make clamping easier and increase efficiency, avoiding scratches between the rim and the turntable.
5. Equipped with 80mm high quality full aluminum small-diameter cylinders for the working table. The clamping force is 58kg higher than 75mm cylinders.
6. Bigger machine cabinet with larger working size, and powerful bead breaking force further enhance the product performances.
7. The 41mm diameter metal hex bar can deal with all kinds of low profile tires with beautiful shape, strong and durable, needing no after-sales service.
8. Pendular pressing shovel reduces effort of tire pressing. Thickened shovel structure with quality shovel protective cover, and anti-skid bead breaker buffer.
9. Optional rear air tank serves the tubeless tire inflation device.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1140mm
Rim width:
3''-14''
Inside clamping:
12''-24''
Outside clamping:
10''-22''
Air supply:
8-10bar
Bead breaker force:
2500kg
Noise level:
≤70dB
N/W weight:
193/213kg

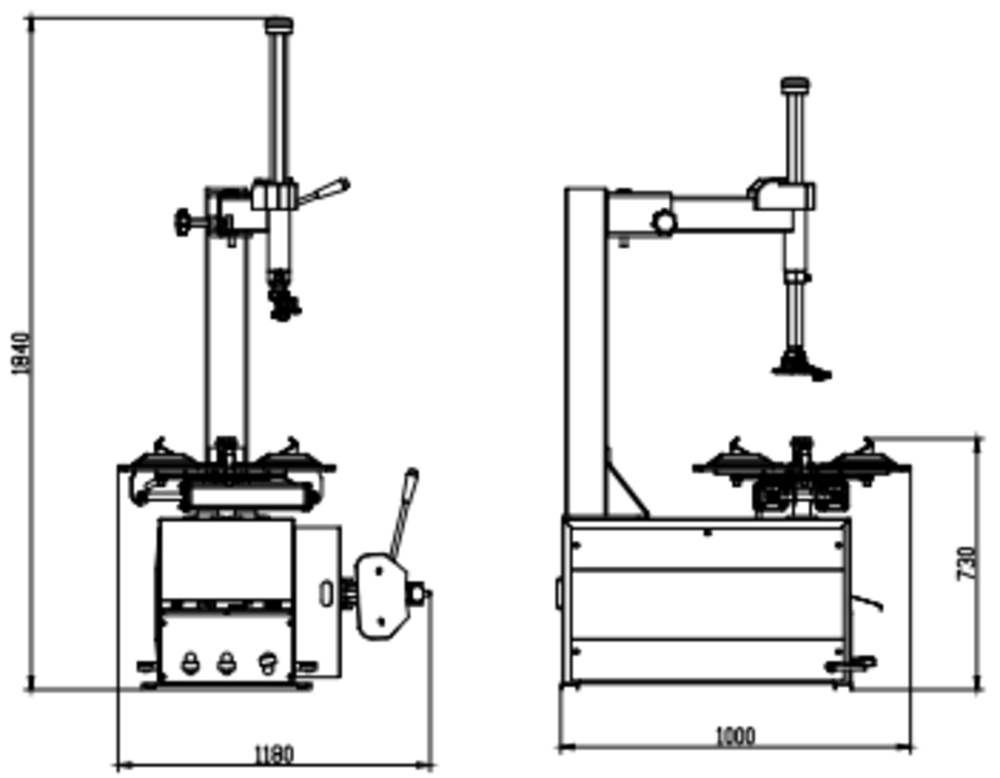

Package size:
980*766*850mm
