BL555

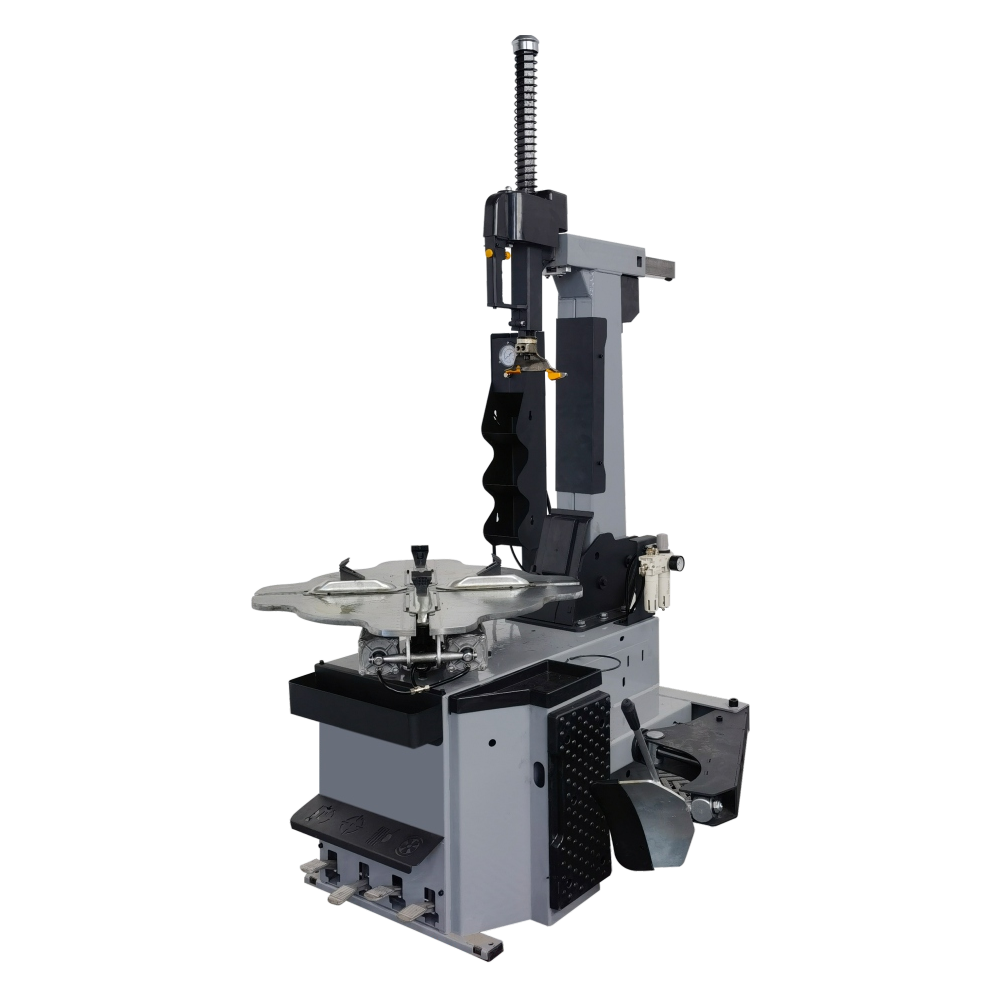

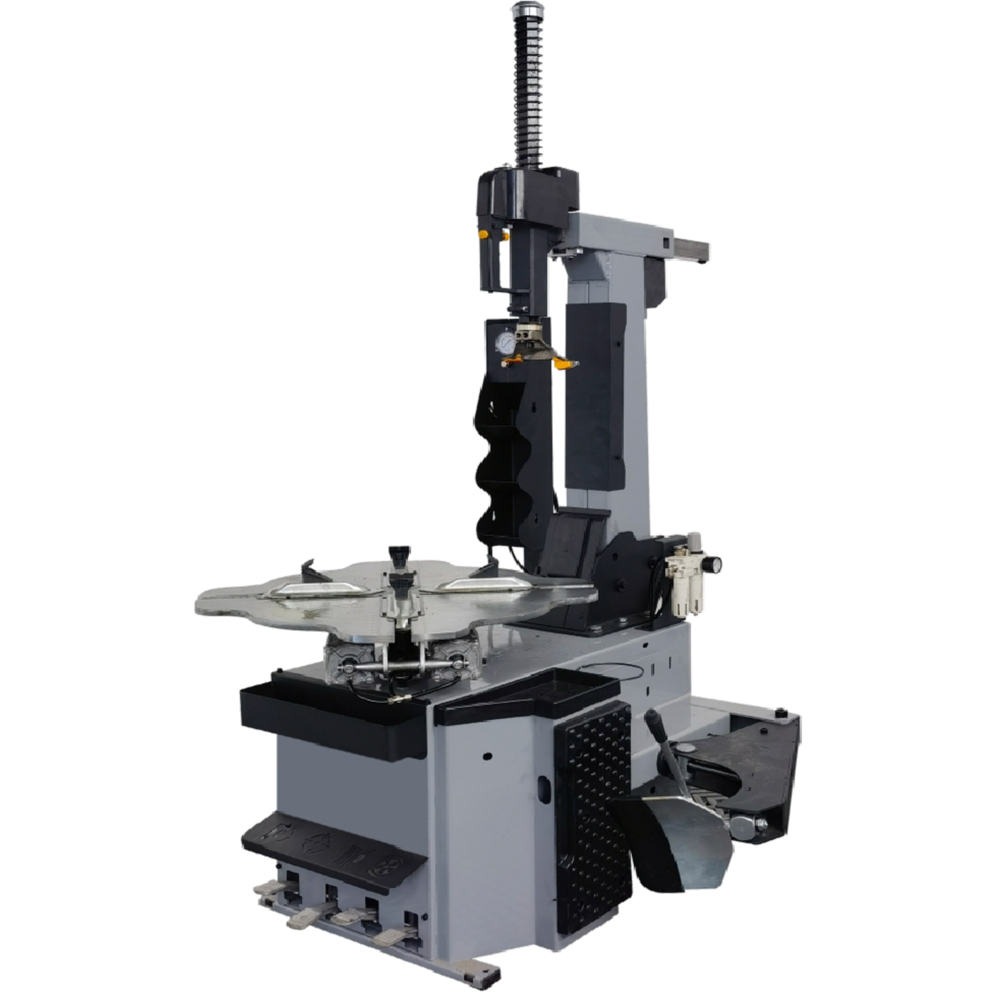

1. Fully automatic tire changer, adopts tilt-back structure. Tilt back and forth are controlled and locked pneumatically.
2. Bigger machine cabinet and larger turntable (26" and 28" optional) greatly increase working strength. The turntable is made of special steel plates, not easy to deform. Double-sided polishing process makes the surface brighter and more beautiful.
3. Double-bending column is made of 4mm steel plates with high strength. Reinforced welding of the front base of the column enhances the overall strength, suitable for all kinds of tires' mounting and demounting.
4. Equipped with Φ80mm high-quality all-aluminum small cylinders under the turntable. The clamping force is 58kg higher than Φ75mm cylinders.
5. Standard fully aluminum alloy bead breaker cylinder can reduce machine vibration and minimize friction, thereby extending the service life of the cylinder.
6. Four-angle adjustable pressing shovel saves labor for tire pressing. Thickened shovel arm with quality shovel protective cover, and anti-skid bead breaker buffer.
7. Optional mechanical helper arm, air inflation device and leverless control device, to meet different needs of customers.

Motor power:
0.75kw/1.1kw
Power supply:
110V/220V/380V
Max. wheel diameter:
1120mm
Rim width:
3''-14''
Inside clamping:
13''-26''
Outside clamping:
12''-24''
Working pressure:
8-10bar
Bead breaker force:
2500kg
Noise level:
<70dB
N/G weight:
247/277kg
Package size:
1100*950*980mm
